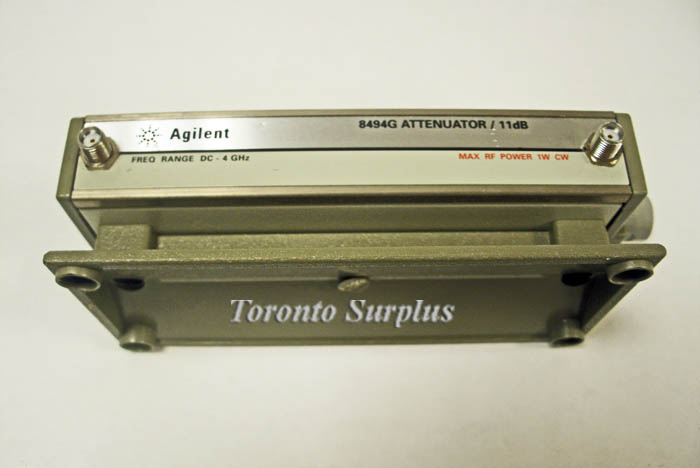

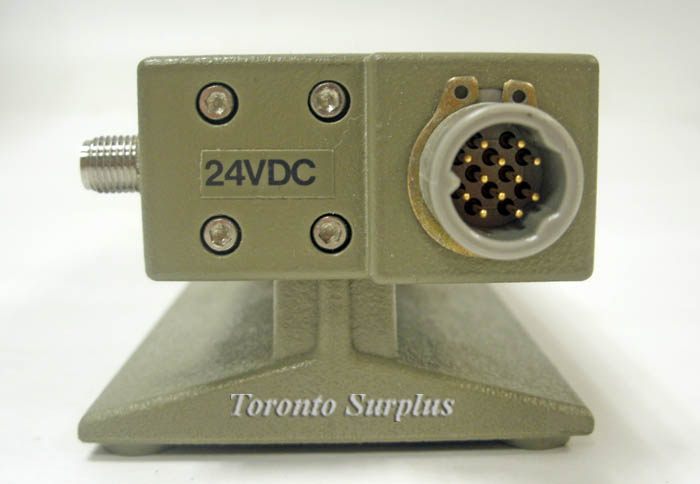

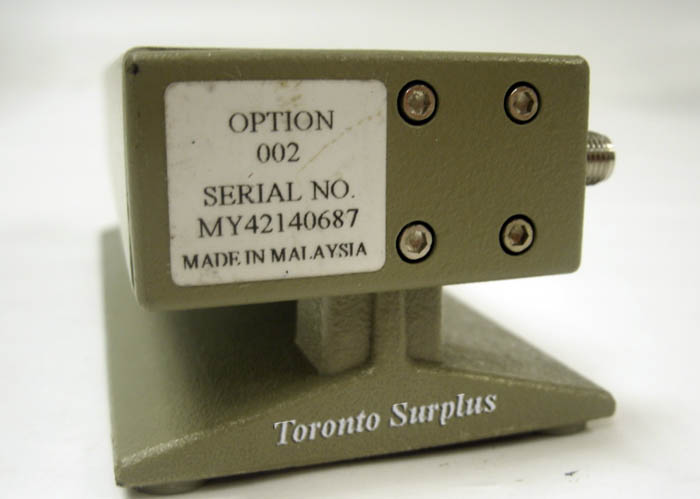

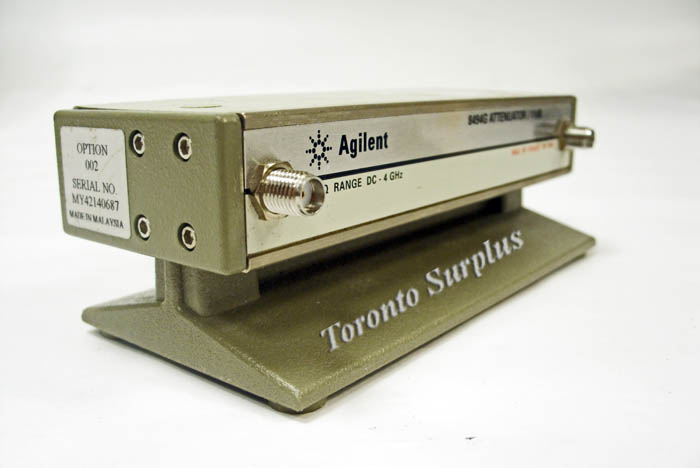

HP 8494G / Agilent 8494G Step Attenuator, DC to 4 GHz, 0 to 11 dB, 1 dB steps, W/ Opt 02
sku108272 — low stock
Request a Quote
By Agilent
<p> The 8494G, dc to 4.0 GHz, programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 …
Description
<p> The 8494G, dc to 4.0 GHz, programmable step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB).
Features:
</p><ul><li>    0 to 11 dB in 1 dB steps</li><li>    Frequency range dc to 4.0 GHz</li><li>    Maximum switching time of 20 ms</li><li>    50 ohm impedance</li><li>    Weight: 2 lb</li></ul><p><span style="color: rgb(128, 0, 0);">* Option 02 = SMA (f) Connector</span></p>
Features:
</p><ul><li>    0 to 11 dB in 1 dB steps</li><li>    Frequency range dc to 4.0 GHz</li><li>    Maximum switching time of 20 ms</li><li>    50 ohm impedance</li><li>    Weight: 2 lb</li></ul><p><span style="color: rgb(128, 0, 0);">* Option 02 = SMA (f) Connector</span></p>
