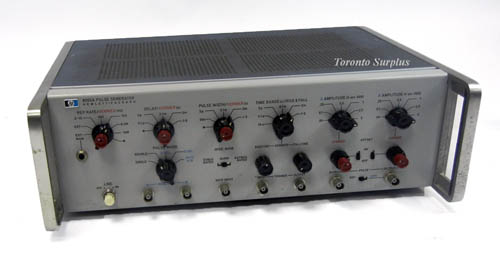

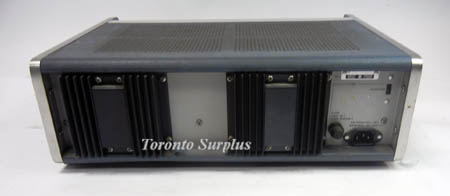

HP 8005A / Agilent 8005A 250MHz Pulse Generator
sku111241 — low stock
Request a Quote
By Agilent
<p>HP / Agilent 8005A Pulse Generator The 8005A is a general purpose, triple output pulse generator.  All parameters on the 8005A are variable and both positive and negative pulses are available simultaneously.  Features: normal and complement outputs, double pulse, square wave and gating…
Description
<p>HP / Agilent 8005A Pulse Generator
The 8005A is a general purpose, triple output pulse generator.  All parameters on the 8005A are variable and both positive and negative pulses are available simultaneously.  Features: normal and complement outputs, double pulse, square wave and gating modes.  </p><ul><li>Transition times: < 10nS to 2 S</li><li>Pulse Width: < 25nS to 3 s</li><li>Square wave: 0.15Hz to 10MHz</li><li>Amplitude: 300mV to 10Vpp</li><li>Repetition rate: 0.3Hz to 20 MHz.</li></ul>
The 8005A is a general purpose, triple output pulse generator.  All parameters on the 8005A are variable and both positive and negative pulses are available simultaneously.  Features: normal and complement outputs, double pulse, square wave and gating modes.  </p><ul><li>Transition times: < 10nS to 2 S</li><li>Pulse Width: < 25nS to 3 s</li><li>Square wave: 0.15Hz to 10MHz</li><li>Amplitude: 300mV to 10Vpp</li><li>Repetition rate: 0.3Hz to 20 MHz.</li></ul>
