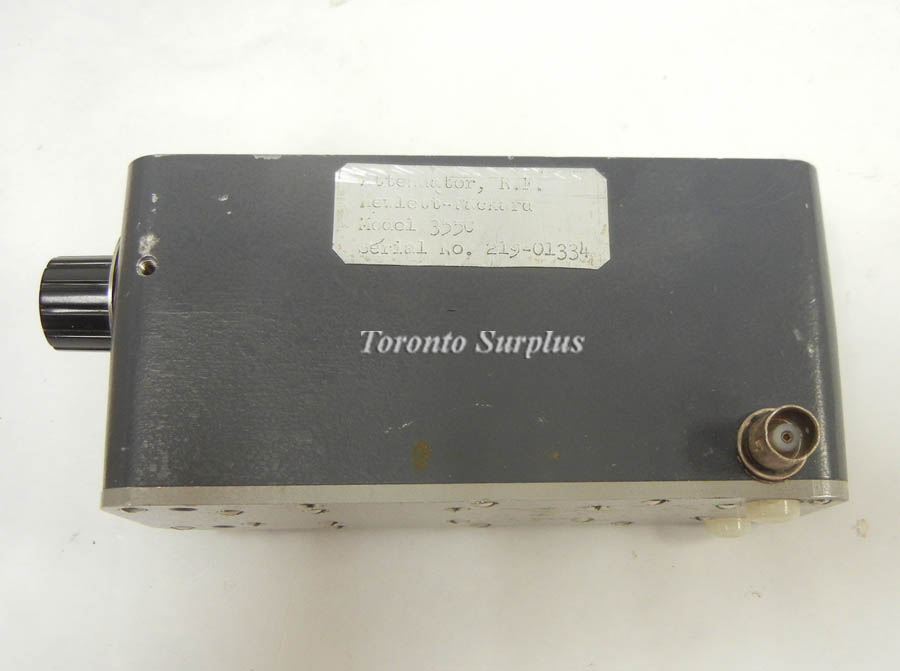

HP 355C / Agilent 355C VHF Attenuators, 0.5W, 50 ohms, 12 dB, DC-1 GHz
sku106243 — low stock
$125.00CAD
By Agilent
Attenuation: 12 dB in 1-dB steps. Frequency Range: DC to 1000 MHz. Overall Accuracy: ±0.1 dB at 1000 MHz; ± 0.25 dB dc, to 500 MHz; ± 0.35 dB, dc to 1000 MHz. Impedance: 50 ohms nominal. Power Handling Capability: 0.5 watt average, 350 watts peak. Maximum SWR (input and output): 1.2 below 250 MHz; 1…
Description
- Attenuation: 12 dB in 1-dB steps.
- Frequency Range: DC to 1000 MHz.
- Overall Accuracy: ±0.1 dB at 1000 MHz; ± 0.25 dB dc, to 500 MHz;
- ± 0.35 dB, dc to 1000 MHz.
- Impedance: 50 ohms nominal.
- Power Handling Capability: 0.5 watt average, 350 watts peak.
- Maximum SWR (input and output): 1.2 below 250 MHz; 1.3 below 500 MHz;
- 1.5 below 1000 MHz.
- Maximum Insertion Loss (insertion loss at 0 dB): 0.20 dB + 2.30 dB/GHz.
