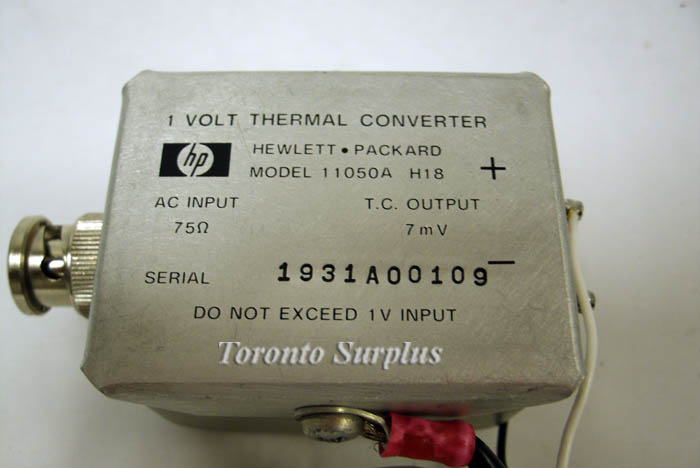

HP 11050A H18 / Agilent 10050A H18 Thermal Converter 1V, 75 ohm, 7mV T.C. Out

This thermal converter is used to accurately convert AC input signals to DC voltages proportional to the rms value of the input.  It has essentially a flat response from 5Hz to 10 MHz, and good frequency response from 10 MHz to 100MHz.

Input Voltage: 1V

Input Resistance: 75 Ohms ± 15 ohms

Output Resistance: Less than 10 ohms

Output TC Voltage: Nominal 7.0 mV
