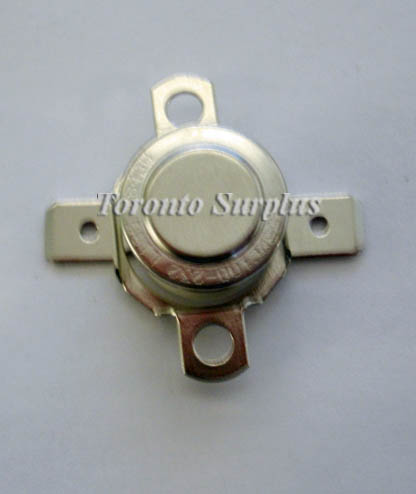

Honeywell 3455RC100-232 / 3455RC100232 Redi-Temp Series Ceramic Automatic Reset Thermostats New Old Stock

                                                   Product Specifications


Functional Properties                                Open on rise
Reset Type                                                   Automatic
Amperage                                                   15 A/10 A resistive max.
Voltage                                                         120 Vac/240 Vac
Operating Temperature                            0 °C to 260 °C [32 °F to 500 °F]
Environmental Exposure Range           -20 °C to 287 °C [0 °F to 550 °F]
Open Temperature                                    85.0 °C [185 °F]
Close Temperature                                   68.3 °C [155 °F]
Open Tolerance                                         2.8 °C [5 °F]
Close Tolerance                                        4.4 °C [8 °F]
Dielectric Strength                                     MIL-STD-202, Method 301; 2000 Vac 60 Hz - Terminal to Case

Insulation Resistance                               MIL-STD-202, Method 302; 500 MOhm
Contact Resistance                                   MIL-STD-202, Method 307; 0.050 Ohm max.
Housing Material                                        Ceramic
Contact Material                                          Silver/nickel alloy
Agency Approvals and Standards           UL, CSA, VDE
Mounting                                                       B203S moveable bracket
Series Name                                               3455RC
