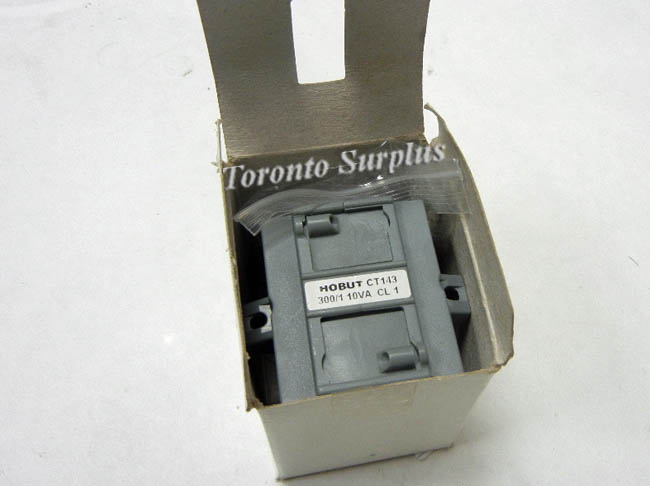

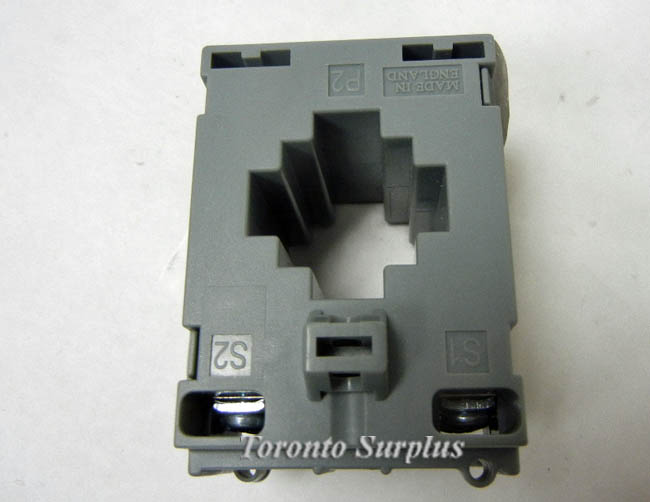

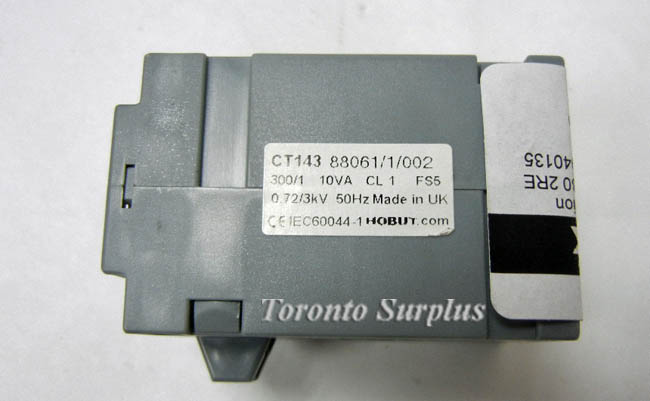

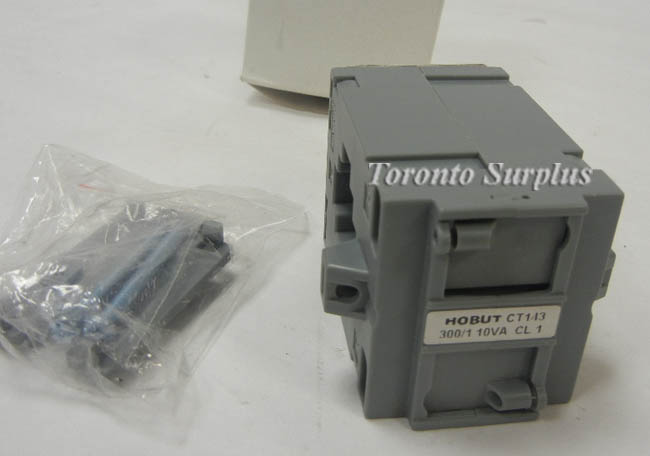

Hobut CT143, 300/1 10VA Current Transformer Series 14, CL1 FS5, 0.72/3kV, 50Hz
sku104612 — low stock
$45.00CAD
By Hobut
DESCRIPTION: A compact moulded case current transformer suitable for primary currents of 300/1 10V A FEATURES: DIN rail mounting clip provided Built in sealable terminal covers Mounting feet and busbar screws supplied narrow width - 50mm TECHNICAL SPECIFICATIONS : Conforms to IEC185, BS 7626, BSEN 6…
Description
DESCRIPTION:
A compact moulded case current transformer suitable for primary currents of 300/1 10V A
FEATURES:
- DIN rail mounting clip provided
- Built in sealable terminal covers
- Mounting feet and busbar screws supplied
- narrow width - 50mm
TECHNICAL SPECIFICATIONS :
- Conforms to IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
- Rated system voltage 0.72 / 3kv
- Ambient Temperature range -30°C to +85°C
- continuous current 1.2 x rated current
