Hewlett Packard 423A / Agilent 423A Crystal Detector 10MHz - 12.4GHz
sku108501 — low stock
Request a Quote
By Agilent
<p>Frequency Range: 10 MHz to 12.4 GHz Frequency Response: ±0.3 dB Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz) Low-Level Sensitivity: > 0.5 mV/µW Maximum Operating Input Power: 200 mW Typical Short-Term Maximum Input Power (< 1 minute): 1 W Noise: < 50 µV Output Polarity: Negative I…
Description
<p>Frequency Range: 10 MHz to 12.4 GHz
Frequency Response: ±0.3 dB
Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz)
Low-Level Sensitivity: > 0.5 mV/µW
Maximum Operating Input Power: 200 mW
Typical Short-Term Maximum Input Power (< 1 minute): 1 W
Noise: < 50 µV
Output Polarity: Negative

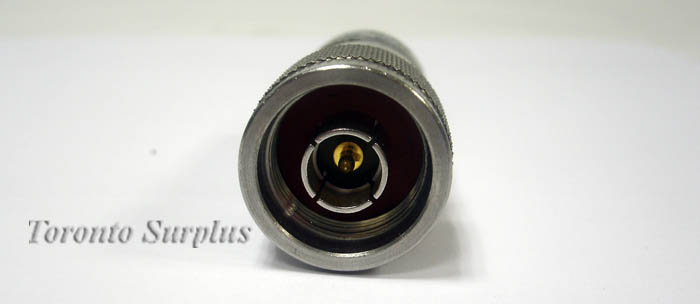

Input Connector: Type-N Male

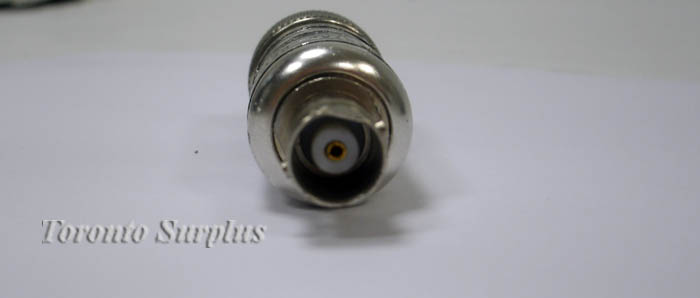

Output Connector: BNC female</p>
Frequency Response: ±0.3 dB
Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz)
Low-Level Sensitivity: > 0.5 mV/µW
Maximum Operating Input Power: 200 mW
Typical Short-Term Maximum Input Power (< 1 minute): 1 W
Noise: < 50 µV
Output Polarity: Negative
Input Connector: Type-N Male
Output Connector: BNC female</p>
