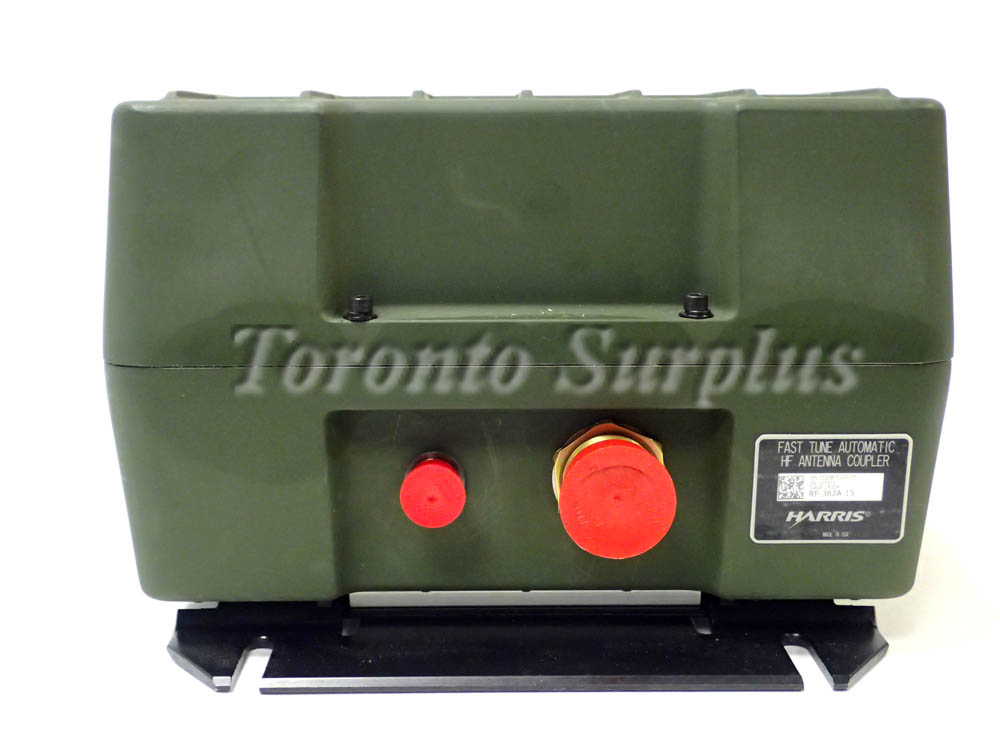

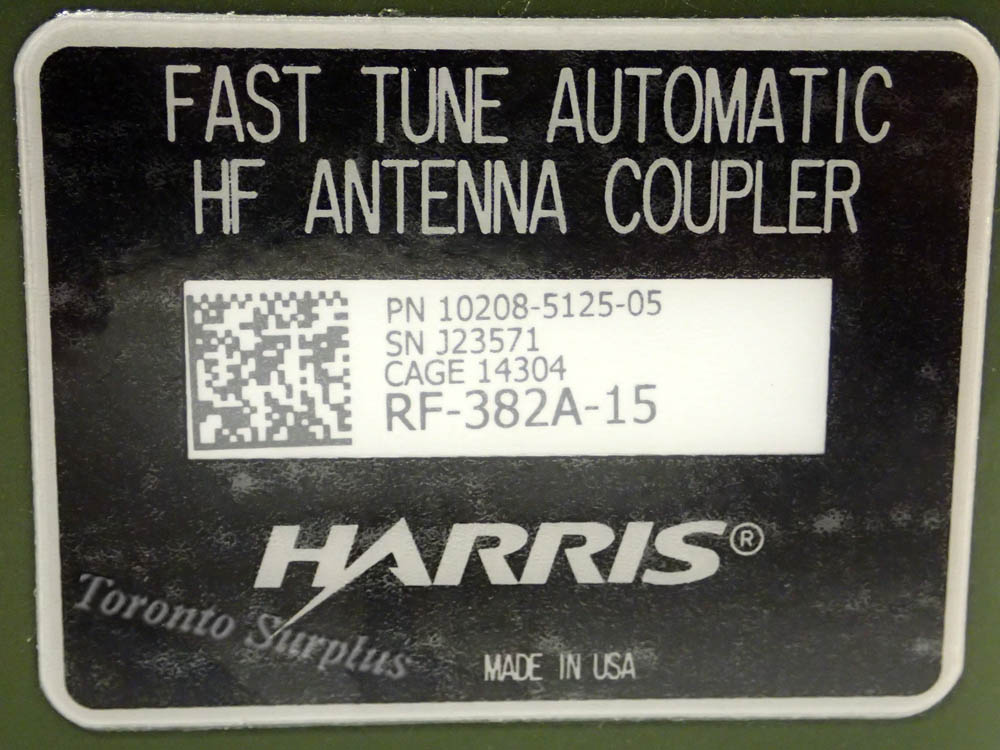

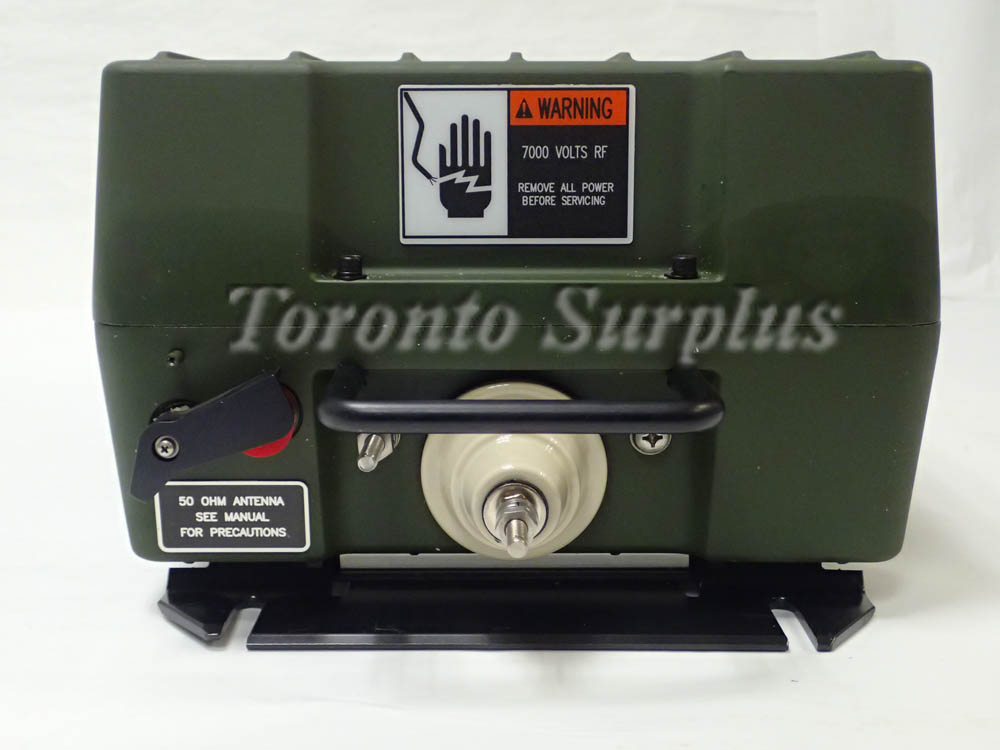

Harris RF-382A-15 Fast Tune Automatic HF Antenna Coupler NEW

Specifications:

Rated RF Input Power, Frequency Range:

• Up to 500 W PEP, 250 W average
• 1.5 to 30 MHz

Tuning Accuracy:

• Automatically tunes to 50 Ohms to within a VSWR of 1.5:1

Tuning Time:

• 25 milliseconds tuning from memory based on prior tuneup of typically less than 1 second (4 seconds max)

Features:

• Protections from high VSWR, high temperature, RF overvoltage and overcurrent; Built-in test; automatic and manually-controlled receive bypass; 25ms tune time; 10 to 32 V DC primary power; lightning surge protection on all control lines; 512-channel memory.

Tune Power Requirements:

• 10 to 50 watts forwards power throughout tuning cycle

Primary power Requirements:

• 10 to 32V DC at 2.5A maximum during tuning; 1.5A maximum after tuning

Remote capability:

• Up to 250ft. seperation between transmitter and coupler

Enclosure Design:

• Submersible to 3ft of water, designed for exposed installations Not in manufacturers packaging.
