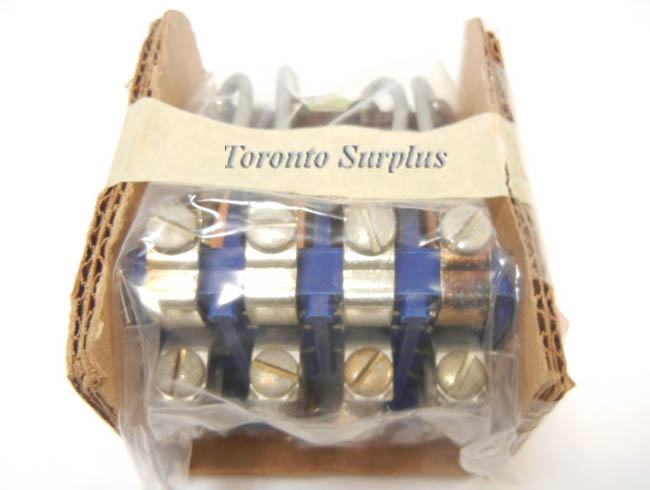

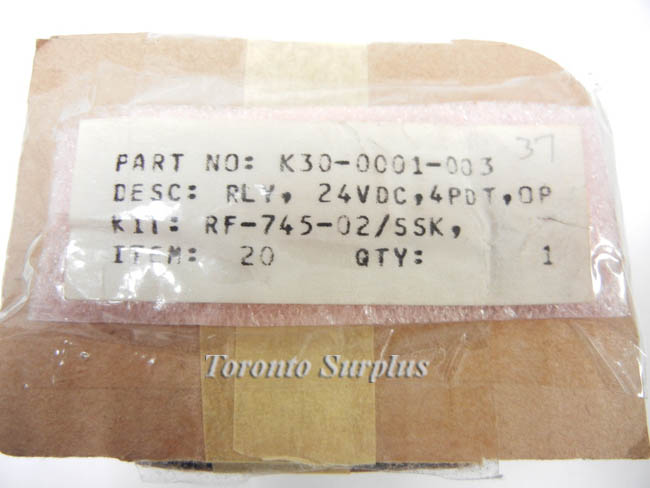

Harris Corporation K30-0001-03 / NSN 5945-00-889-1157 Electromagnetic Relay

Mounting Facility Pattern

• Triangle single mounting facility.

Nonpile-up Main Contact Arrangement

• 4 Pole dble thorw, one position momentary.

Nominal Operating Arrangement

• 180.0 milliamperes dc single winding

Duty Type

• continuous

Operating Voltage Rating And Type at Specified Temp

• 24.0 Volts teardrop,two holes type 4f single winding

Main Contact Load Current Rating at Maximum Rated Voltage

• 3 unthreaded hole single mounting facility

Overall Height

• 2.719 inches nominal

Coil Quantity

• 1

Terminal Type and Quantity

• 14 Pin all functions

Unthreaded Mounting Hole Diameter

• 0.164 inches nominal single mounting facility

Winding Quantity

• 1

Winding DC Resistance Rating

• 132.0 ohms nominal single winding

Main Contact Maximum Voltage Rating in Volts

• 230.0 ac
