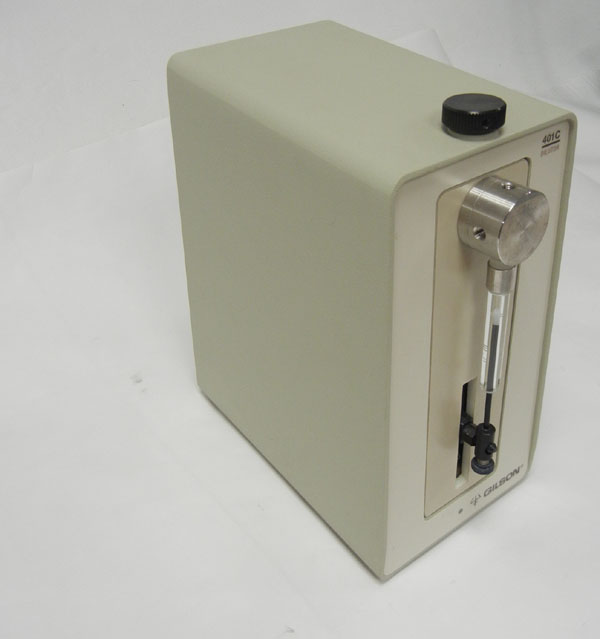

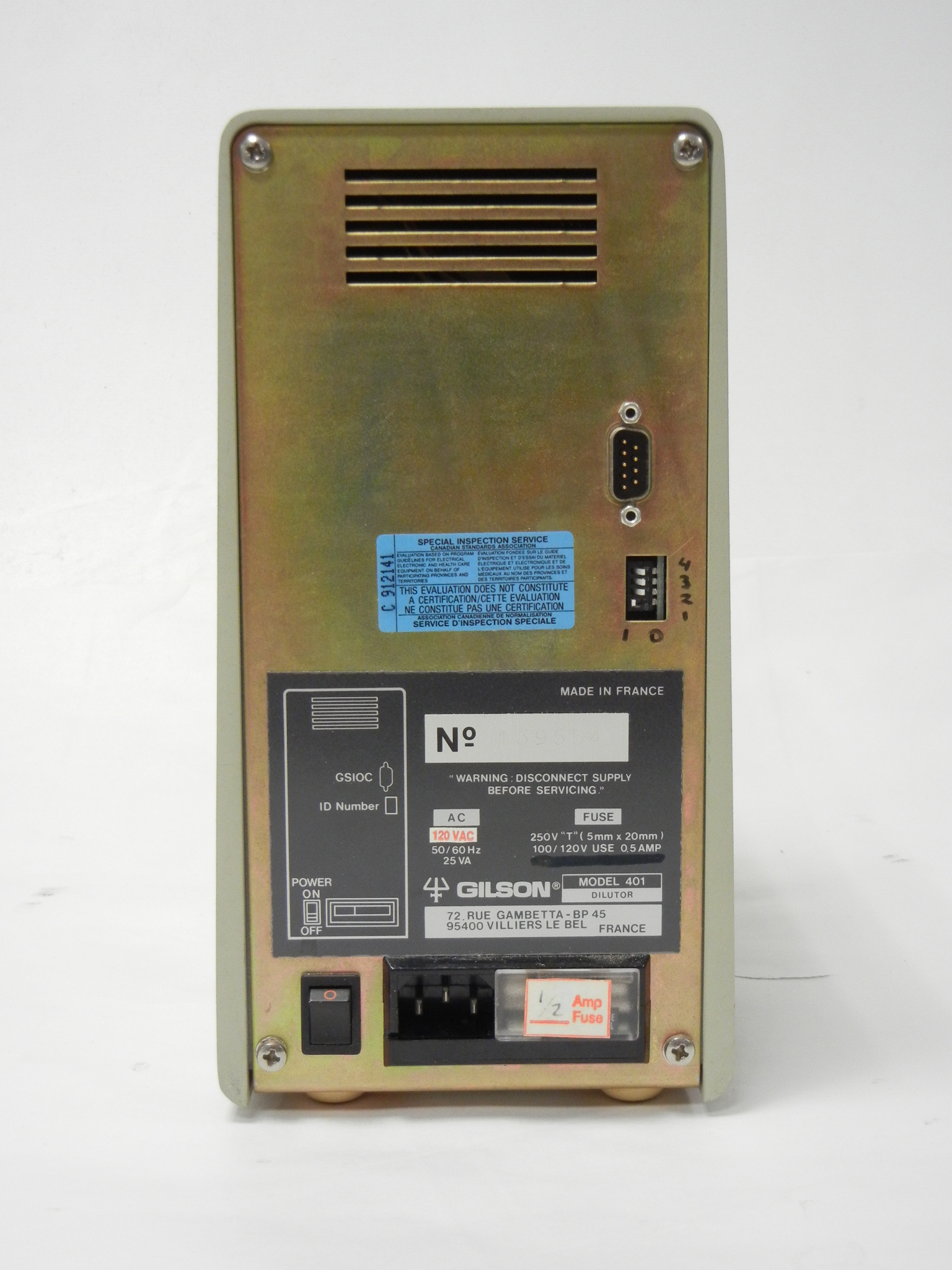

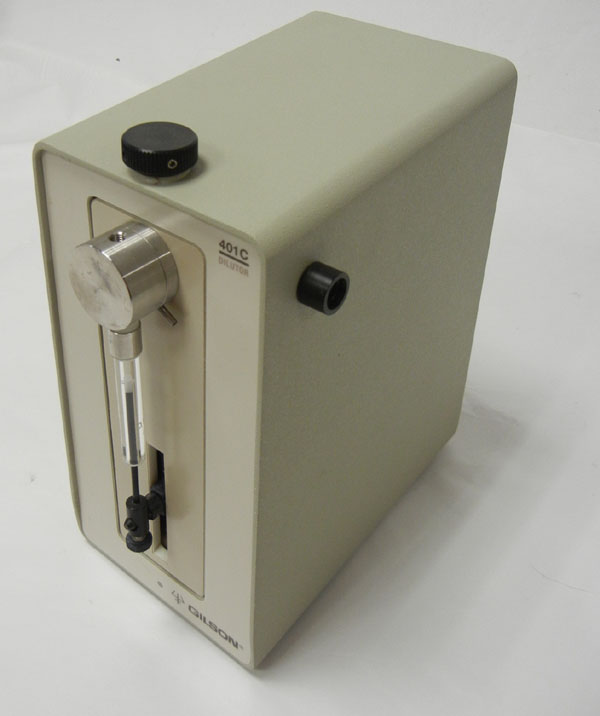

Gilson 401C Dilutor Pump, HPLC / Chromatography

Gilson 401 Dilutor, HPLC / Chromatography

Operating Modes: 5 operating modes: dispensing, dilution, pipetting, partition and linking.

Volume Range: 2 to 11000 ml using four different syringes

Dilution Ratio: Maximum dilution ratio 1:250

Maximum Pressure: 500ml, 1ml and 5ml syringes: 8bar-0.8MPa-114psi

Minimum piston travel time: 1.5 seconds for one complete stroke

Piston Drive: Stepper motor

Valve Drive: Synchronous motor

Chemical Compatability: All liquids compatable with PTFE, FEP, PCTFE, glass and ceramic

Program storage: Possibility to store multiple programs. Battery backed up.

Voltage input: Nominal voltage +/- 10%

Weight: 4.8 KG
