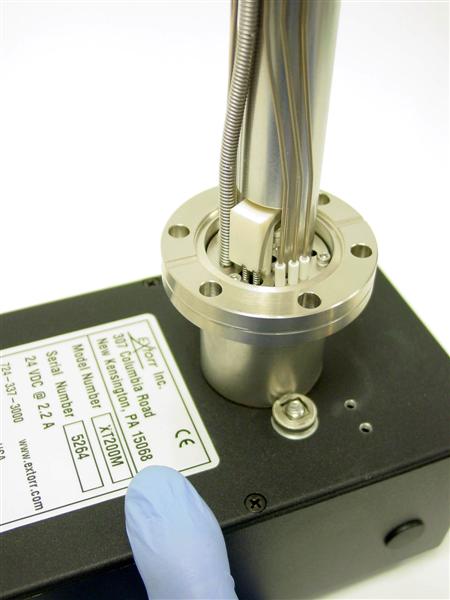

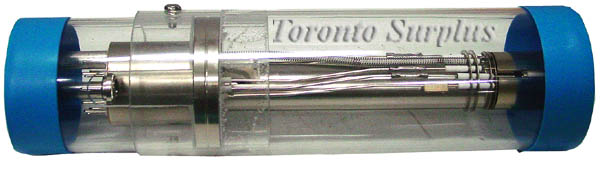

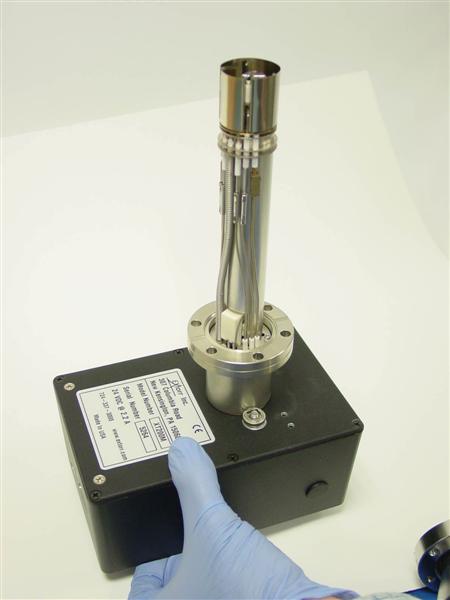

Extorr XT200M Quadrupole Residual Gas Analyzer RGA consisting of Ion Gauge + Pirani Gauge with Electron Multiplier & More, for Vacuum System
sku76641 — low stock
Request a Quote
By Extorr
<h3 class="icon-head head-products">Extorr XT200M Quadrupole Residual Gas Analyzer + Ion Gauge + Pirani Gauge with Electron Multiplier, USB to Serial Converter, Power Adapter and RS232 Cable</h3><p>1 to 200 amu</p><p>Resolution: Greater than 1 amu @ 10% peak height, adjustable Operating pressure At…
Description
<h3 class="icon-head head-products">Extorr XT200M Quadrupole Residual Gas Analyzer + Ion Gauge + Pirani Gauge with Electron Multiplier, USB to Serial Converter, Power Adapter and RS232 Cable</h3><p>1 to 200 amu</p><p>Resolution:
Greater than 1 amu @ 10% peak height, adjustable
Operating pressure
Atmosphere to UHV ( ion gauge operation below 10-2 torr, RGA operation below 10-3 torr and Multiplier operation below 10-6 torr)
Partial Pressure Detector type
Faraday cup</p><p>Partial Pressure Sensitivity (A/Torr)
5x10-4 into Faraday cup. Measured with N2 @ 28 amu with 1 amu full peak width, 10% height, 70 eV electron energy, 6 eV ion energy and 2 mA electron emission current.</p><p>
Minimum detectable partial pressure
5x10-14 torr with Multiplier. Measured with N2 @ 28 amu with 1 amu full peak width, 10% height, 70 eV electron energy, 6 eV ion energy, and 2 mA electron emission current. 10-11 torr with Faraday cup.</p><p>Total Pressure Detector type  >10-3 Torr
Pirani type, (measures heat loss from noble metal wire)</p><p><strong style="color: rgb(68, 68, 68); font-family: Arial, Helvetica, sans-serif; ">Total Pressure Detector type <10<sup>-3</sup> Torr
Bayard/Alpert type ion gauge, x-ray limit 10-9</p><p>CCU Max. operating temperature
70°C</p><p>CCU temperature sensor
solid state sensor in CCU, temperature continuously monitored and displayed</p><p>Bakeout temperature
350°C (without CCU)</p><p>Probe operating temperature
100°C,  Platinum RTD on probe, temperature continuously monitored and displayed</p><p>Ionizer Design

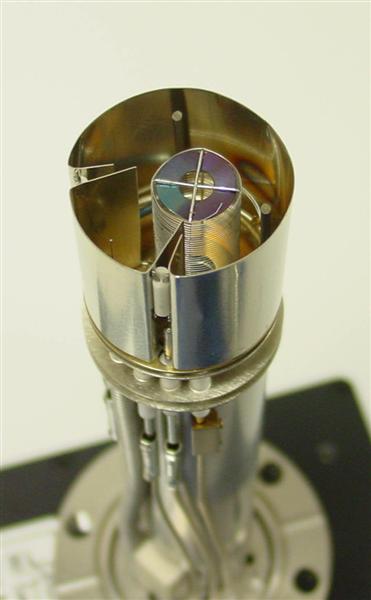

Open ion source , electron impact ionization.</p><p>Probe Materials
SS304, Kovar, Tungsten, Alumina, Iridium, Copper, Nickel</p><p>Filament
Dual Thoriated Iridium with firmware protection.</p><p>Degas
Built-in 1 to 30 W ramp-upBuilt-in 1 to 30 W ramp-upBuilt-in 1 to 30 W ramp-up</p><p>Electron energy
10 to 150 V, continuously programmable </p><p>Ion energy
3 to 10 V, continuously programmable</p><p>Electron emission current
0.1 to 5 mA, continuously programmable</p><p>Probe mounting
Minimum tube I.D. 1.375"  flange 2.75" CF</p><p>CCU dimensions
3.3" x 4.8"x 7.5". Easily separated from the probe for bakeout</p><p>Mass stability
±0.1 amu after 30 minutes warmup.
</p><p>Power requirement
24 VDC @ 2.1 Amps. Standard  </p><p>Weight: 5lbs
* Includes Power Adapter and RS232 cable
</p><p> </p>
