Ethernet 10BaseT Transceiver 10.2 - 15.75VDC
sku107771 — low stock
Request a Quote
By Ethernet
Features: Provides a complete interface of the AUI to Ethernet UTP cable ( IEEE 802.3 10Base-T ) Supports data transfer rate of 10Mbps CAMA/CD access mechanism Capability for driving the UTP cable segment up to 100M ( 328 ft.) without the use of a repeater Selectable Link test and SQE test functions…
Description
Features:

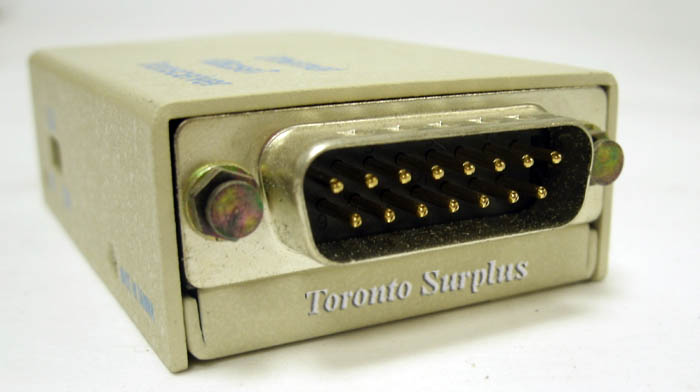

- Provides a complete interface of the AUI to Ethernet UTP cable ( IEEE 802.3 10Base-T )
- Supports data transfer rate of 10Mbps
- CAMA/CD access mechanism
- Capability for driving the UTP cable segment up to 100M ( 328 ft.) without the use of a repeater

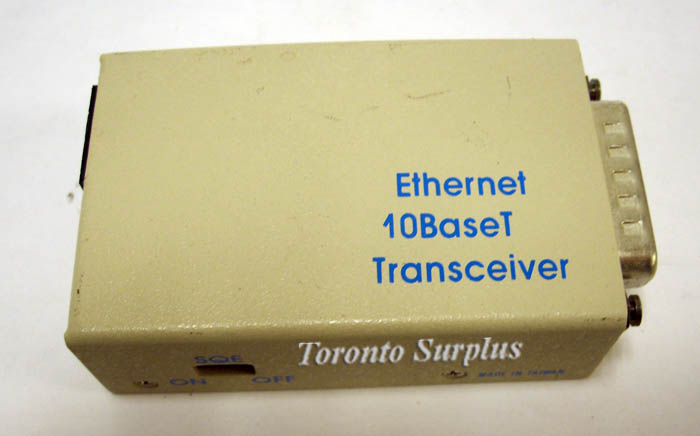

- Selectable Link test and SQE test functions

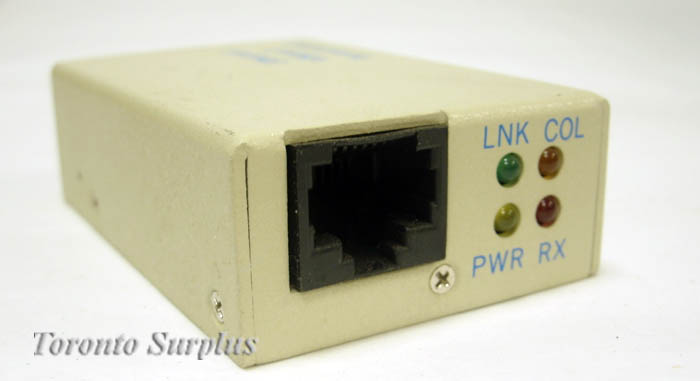

- The RJ45 jack can detect and automatically correct reversed wiring polarity on the receiving pair of the UTP cable
- Supports LED indications for the Power, Transmit, Link, Receive, Collision, and Polarity reversal status
- Dimension: 42mm x 65mm x 20mm
- Input voltage: 10.2 to 15.75 VDC
- Input current: 250mA @12 VDC ( typical )
