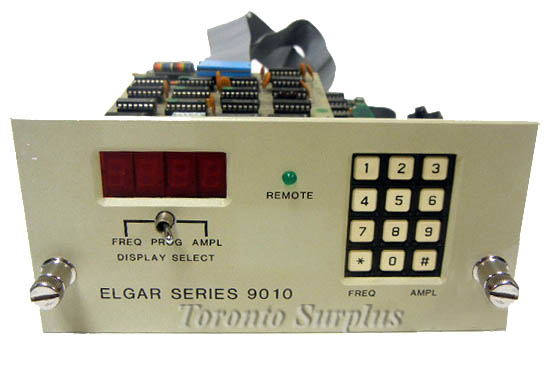

Elgar Series 9010 PIP Plug-in Progammable Oscillator 45-5000 Hz

Description

<p>Elgar 9010 Series PIP Plug-in Progammable Oscillator</p><p>The Elgar 9010 Series Plug in programmers are solid state, self contained instruments intended for use in Automatic Test Equipment (ATE) systems. In response to digitally coded command inputs from a system controller, the PIP produces output signals which are, in turn, inputs to AC Power Sources The PIP programs the frequency and the amplitude of the associated power sorce via local control, GPIB control, or BCD control.

Features

Frequency Range: 45Hz to 5000Hz (Jumper Range Change)
BCD Parallel Programming
Local Control and Display
Out of Range, Frequency Sensing

Specifications

Input Power: 117VAC, ±42VDC
Output Signal: 0-2.5VAC onto 800-ohm Load (per phase)
Operating Temperature Range: 0-50°C
Programming: BCD parallel or GPIB per IEEE 488-1978
Distortion (THD): Less than 1% within power source range
Frequency Ranges (Jumper Range Change): 45 Hz to 99.99 Hz in 0.01 Hz steps / 45 Hz to 999.9 Hz in 0.1 Hz steps / 45 Hz to 5000 H in 1 Hz steps
Voltage Ranges: 0-130 V in 0.1 v steps</p>
