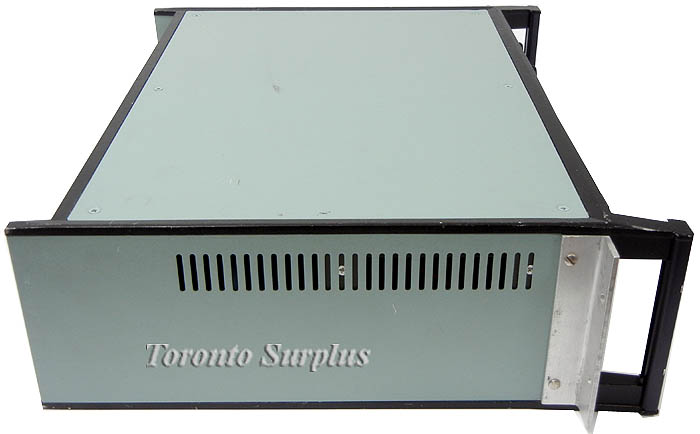

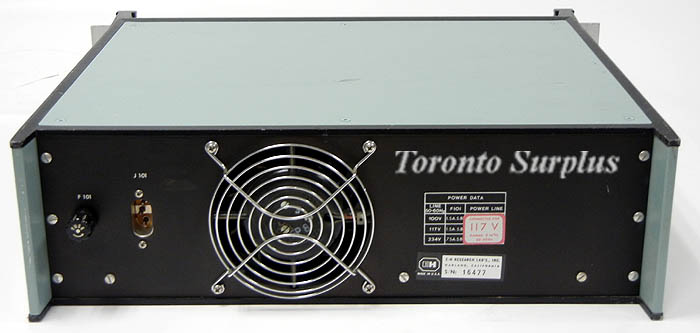

E-H Research Laboratories EH 129 / EH129 Pulse Generator, 500 MHz
sku83221 — low stock
10% Store Wide!Save $180.00
$1,620.00CAD$1,800.00
By E-H Research Laboratories
<p>E-H Research Laboratories EH 129 Pulse Generator, 500 MHz</p><p>Features:</p><p> </p><ul><li>    Less than 500 picosecond rise and fall times</li><li>    Output amplitude to ±2 volts into 50 ohms</li><li>    Pulse Repetition Frequency: 10 KHz to 5…
Description
<p>E-H Research Laboratories EH 129 Pulse Generator, 500 MHz</p><p>Features:</p><p> </p><ul><li>    Less than 500 picosecond rise and fall times</li><li>    Output amplitude to ±2 volts into 50 ohms</li><li>    Pulse Repetition Frequency: 10 KHz to 500 MHz internal frequency, continuously variable in 12 ranges
    (1-3-10 sequence) with coarse selector and fine control.  DC to 500 MHz from external trigger.</li><li>    Pulse Delay: 7ns to 50µs, continuously variable in 10 ranges (1-3-10 sequence) by coarse selector and fine
    control</li><li>    Pulse Width: approximately 1.5ns to 50µs, continuously variable in 10 ranges (1-3-10 sequence) by coarse
    selector and fine control</li><li>    Output Pulse Amplitude: ±200 mV to ±2 volts into 50 ohms, continuously variable by 2-position coarse range
    switch (200 mV to 600 mV/600 mV to 2 volts) and fine control.   Current source output</li></ul>
