Bird Electronic 3129 BPM Digital Broadcast Remote Power Monitor Display
The Bird 3129 BPM Digital Display ( BPM Display ) is a remote monitor panel to be used with the BPM

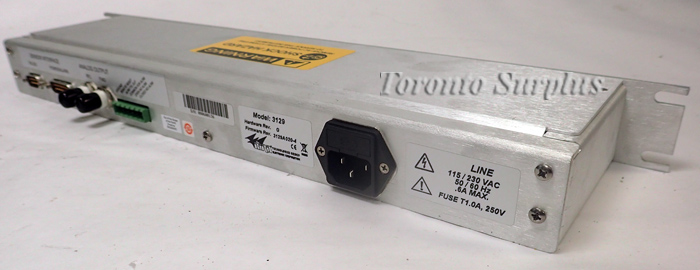

Display Unit Only, As Pictured
The 3129 accurately measures power in digitally modulated and multi-carrier systems and displays the BPME status. The single line display is divided into two fields and displays forward power, and either reflected power or the match measurement. An indicator in the lower right of the last digit blinks on and off to indicate communication with the BPME. It also acts as a DC power supply. The unit includes a 50 feet of cable to connect RS-232 and serial ports between 3129 and line section, and serial interface cable.
FEATURES
- A Single line display divided into two fields,Displays forward power, and either reflected power or the matched measurement, An indicator in the lower right of the last digit blinks on and off to indicate communication with the BPM
- Displays match measurements as VSWR, Rho, Return Loss,or efficiency
- Supplies DC Power to the BPM
- Displays the BPM alarm status
- Provides an electrical interface for the discrete outputs fromthe BPM
- Provides an interace to comnnect a PC to the BPM
SPECIFICATIONS
Display: 20 character LCD with LED backlight
RS-232 Serial Port: Connector: Female DB-9 / Protocol: RS-232, 9600 baud, no parity, 8 data bits, no handshake
Operating Voltage: 115/230 VAC at 50/60 Hz, less than 10 watts
