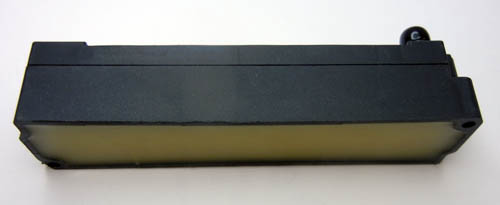

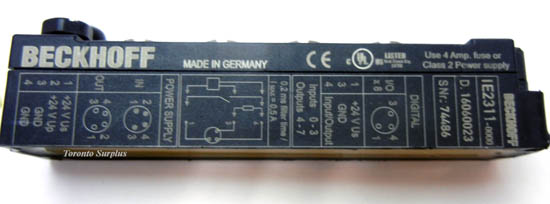

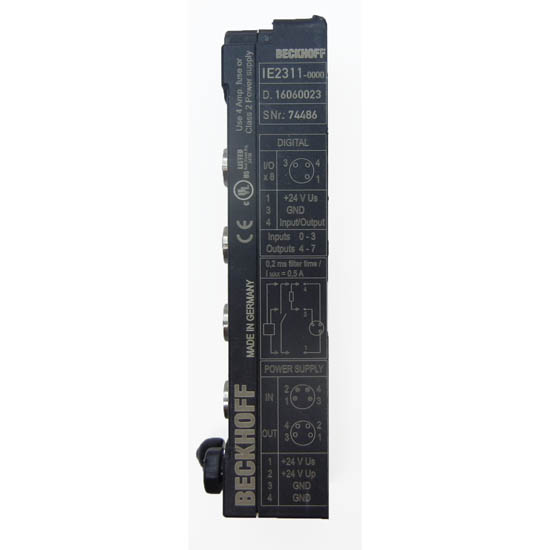

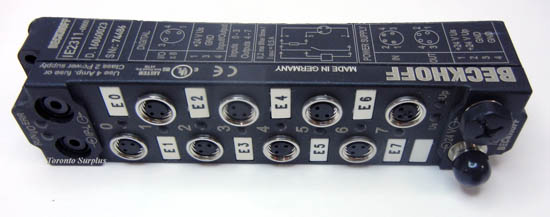

Beckhoff IE2311 4x Digital Input + 4x Digital Output 24 VDC, IMAX = 0.5 A
sku115199 in stock
Request a Quote
By Beckhoff
<p>Beckhoff IE2311</p><p>4 x digital input + 4 x digital output 24 V DC, IMAX = 0.5 A The IE2311 digital I/O modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. T…
Description
<p>Beckhoff IE2311</p><p>4 x digital input + 4 x digital output 24 V DC, IMAX = 0.5 A
The IE2311 digital I/O modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected by screw type M8 connectors.</p><ul><li>Number of channels: 4 inputs + 4 outputs</li><li>Input/output connections: M8, screw type</li><li>Input filter: 0.2 ms</li><li>0“ signal voltage: -3…+5 V</li><li>“1“ signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2)</li><li>Sensor supply: from control voltage, max. 0.5 A total, short-circuit-proof</li><li>Rated load voltage: 24 V DC (-15 %/+20 %)</li><li>Max. output current: 0.5 A on each channel, individually short-circuit-proof</li></ul>
The IE2311 digital I/O modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected by screw type M8 connectors.</p><ul><li>Number of channels: 4 inputs + 4 outputs</li><li>Input/output connections: M8, screw type</li><li>Input filter: 0.2 ms</li><li>0“ signal voltage: -3…+5 V</li><li>“1“ signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2)</li><li>Sensor supply: from control voltage, max. 0.5 A total, short-circuit-proof</li><li>Rated load voltage: 24 V DC (-15 %/+20 %)</li><li>Max. output current: 0.5 A on each channel, individually short-circuit-proof</li></ul>
