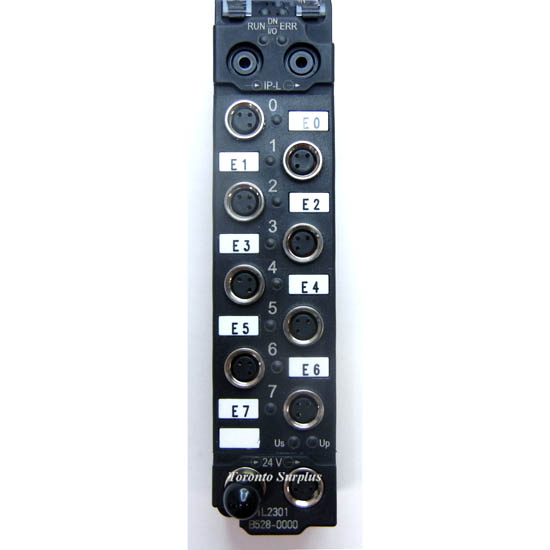

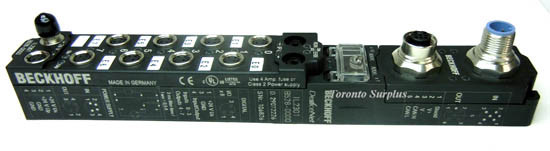

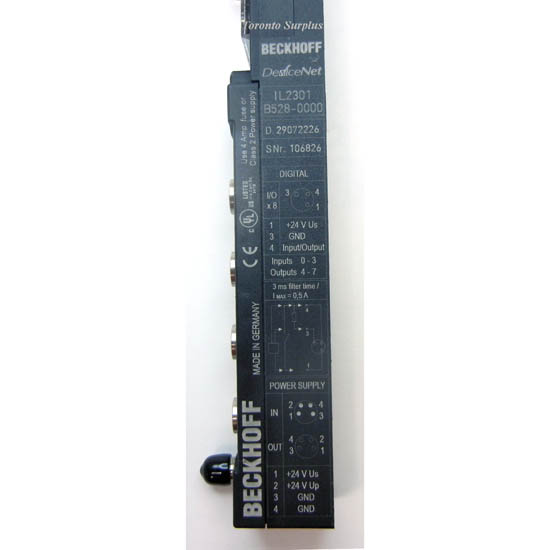

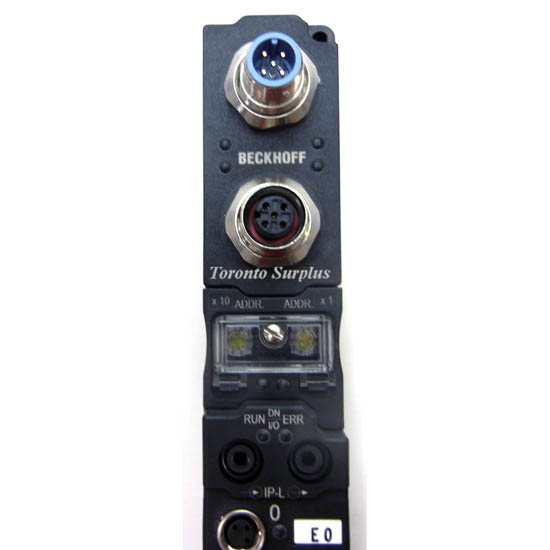

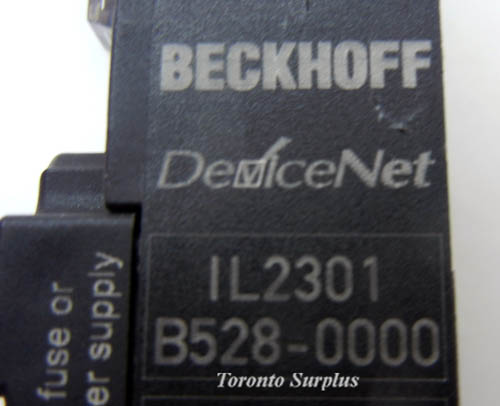

Beckhoff Devicenet IL2301 B528 Coupler Box Module with 4x Digital Input + 4x Digital Output 24 VDC, IMAX = 0.5 A

Description

<p>Beckhoff Devicenet IE2301 B528 Coupler Box Module with 4x Digital Input + 4x Digital Output 24 VDC, IMAX = 0.5 A</p><p>The IL230x Coupler Box modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.</p><ul><li>&#160;EN 61131-2, type 2</li><li>Number of channels: 4 inputs + 4 outputs</li><li>Input/output connections type: M8 screw type</li><li>Input filter: 3.0 ms</li><li>“0“ signal voltage: -3…+5 V</li><li>“1“ signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2)</li><li>Sensor supply: Derived from control voltage, max. 0.5 A total, short-circuit-proof</li><li>Load type: ohmic, inductive, lamp load</li><li>Rated load voltage: 24 V DC (-15 %/+20 %)</li><li>Max. output current: 0.5 A on each channel, individually short-circuit-proof</li><li>Short circuit current: typ. 1.5 A</li><li>Auxiliary power current: typ. 20 mA</li><li>Power supply connection feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin</li></ul>

Specifications
