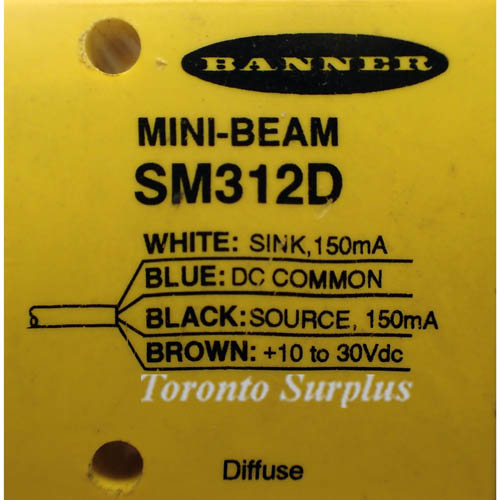

Banner SM312D Mini-Beam Diffuse Mode Sensor w/ 6½' Cable
sku119421 — low stock
$35.00CAD
By Banner
Banner SM312D Mini-Beam Diffuse Mode Sensor w/ 6½' Cable Compact, modulated, self-contained diffuse proximity mode sensors for 10-30V dc operation Range to 380 mm (15") (referenced to 90% reflectance white test card) Switch-selectable for light operate or dark operate Highly repeatable 1 millisecond…
Description
Banner SM312D Mini-Beam Diffuse Mode Sensor w/ 6½' Cable
- Compact, modulated, self-contained diffuse proximity mode sensors for 10-30V dc operation
- Range to 380 mm (15") (referenced to 90% reflectance white test card)
- Switch-selectable for light operate or dark operate
- Highly repeatable 1 millisecond response
- Both sourcing and sinking outputs (150 mA max. each); continuous overload and short-circuit protected
- Rugged, epoxy-encapsulated construction: meets NEMA standards 1, 2, 3, 3S, 4, 4X, 6, 12 and 13; IEC IP67
- Physically and electrically interchangeable with 18 mm barrel-type photoelectrics
