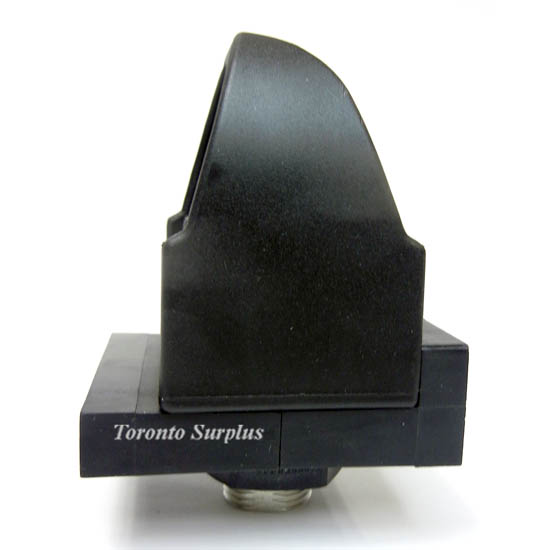

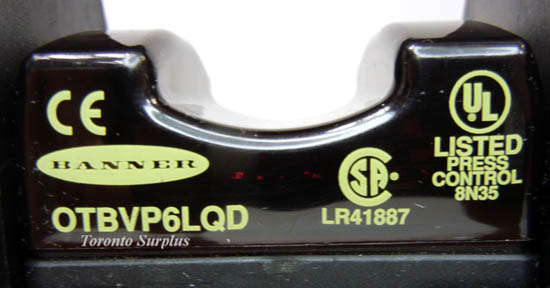

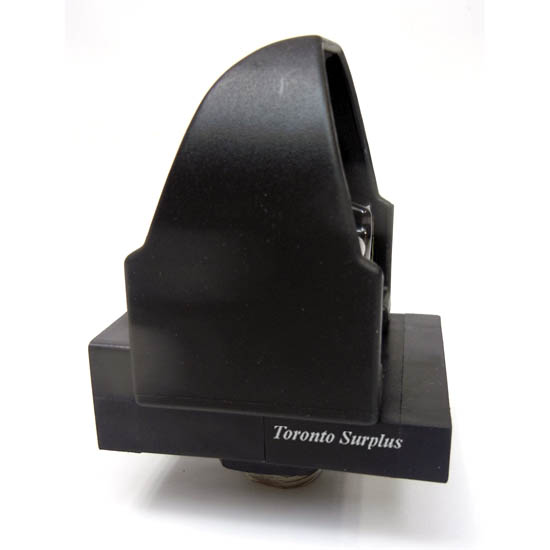

Banner OTBVP6LQD OTB Series Alternate Action Optical Touch Button with Lexan Upper Housing, OPTO-TOUCH Field Cover and Model SMB30S Swivel-Mount Bracket
sku116581 — low stock
Request a Quote
By Banner
<p>Banner OTBVP6LQD OTB Series Alternate Action Optical Touch Button (L): Lexan upper housing (others are polysulfone) (QD): Indicates Quick Disconnect base Banner Optical Touch Buttons are touch-activated photoelectric switches designed to replace capacitive touch switches and mechanical push butt…
Description
<p>Banner OTBVP6LQD OTB Series Alternate Action Optical Touch Button
(L): Lexan upper housing (others are polysulfone)

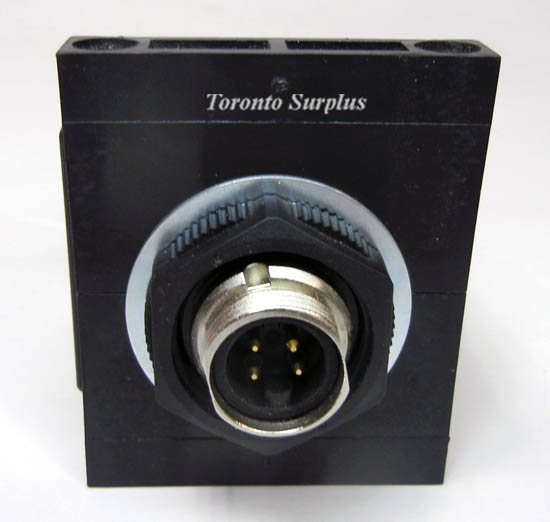

(QD): Indicates Quick Disconnect base
Banner Optical Touch Buttons are touch-activated photoelectric switches
designed to replace capacitive touch switches and mechanical push buttons.
The OPTO-TOUCH's SPDT electromechanical relay or solid-state output (depending
upon model) is activated for as long as a finger, introduced into the "touch
area" (yoke) of the switch, interrupts the OPTO-TOUCH's infrared sensing beam.
10-30V DC
SPDT electromechanical relay output, QD base
OPTO-TOUCH Field Covers
OPTO-TOUCH Field Covers are designed to
prevent inadvertent activation of OPTO-TOUCHs due to objects
(loose clothing, debris, etc.) which might accidentally block their
sensing beam.
Field covers are constructed of rugged polycarbonate-PET polyester
blend, which is capable of absorbing high impacts (even at low
temperatures). This material is highly resistant to abrasion and to
damage by most chemicals.

Model SMB30S swivel-mount bracket </p>
(L): Lexan upper housing (others are polysulfone)
(QD): Indicates Quick Disconnect base
Banner Optical Touch Buttons are touch-activated photoelectric switches
designed to replace capacitive touch switches and mechanical push buttons.
The OPTO-TOUCH's SPDT electromechanical relay or solid-state output (depending
upon model) is activated for as long as a finger, introduced into the "touch
area" (yoke) of the switch, interrupts the OPTO-TOUCH's infrared sensing beam.
10-30V DC
SPDT electromechanical relay output, QD base
OPTO-TOUCH Field Covers
OPTO-TOUCH Field Covers are designed to
prevent inadvertent activation of OPTO-TOUCHs due to objects
(loose clothing, debris, etc.) which might accidentally block their
sensing beam.
Field covers are constructed of rugged polycarbonate-PET polyester
blend, which is capable of absorbing high impacts (even at low
temperatures). This material is highly resistant to abrasion and to
damage by most chemicals.

Model SMB30S swivel-mount bracket </p>
