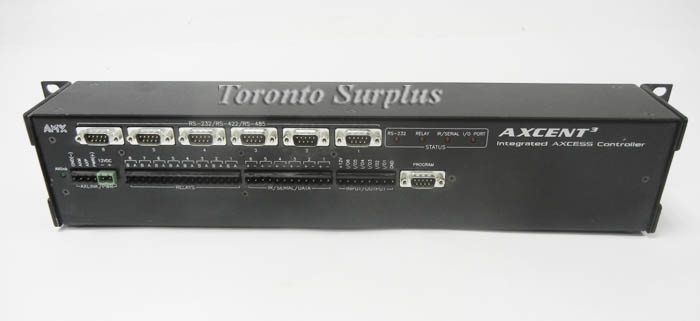

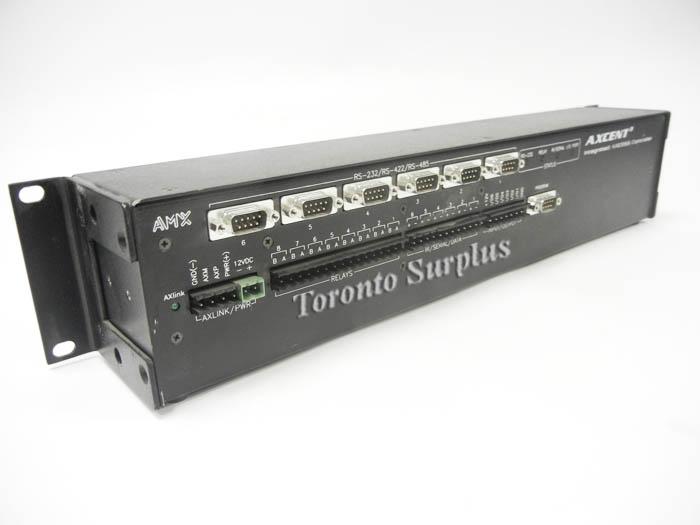

AMX Axcent3 Integrated Axcess System with CC-IRC, 28VAC / 24VDC
sku111121 — low stock
Request a Quote
By Unknown
The Axcent3 Integrated Axcess System and Axcent3 PRO Integrated Axcess Control Frame offer versatile, high-density multiport control. They can act as a system master or server, allowing multiple Axcent3 units to be combined in the same system – an AMX exclusive feature. Ports have new power – IR por…
Description
The Axcent3 Integrated Axcess System and Axcent3 PRO Integrated Axcess Control Frame offer versatile, high-density multiport control. They can act as a system master or server, allowing multiple Axcent3 units to be combined in the same system – an AMX exclusive feature. Ports have new power – IR ports can send one-way RS-232. I/O channels can provide automatic, sensed IR power control. RS-232/422/485 ports can operate at up to 115,200 baud. All ports are software configurable by Open AXCESS and AMX Studio Software.
CONTROL PORTS
- Six IR/Serial/RS-232 ports (One-way RS-232 300-38,400 baud, 0-5 VDC)
- Six RS-232/422/485 ports, 9-pin male D-sub connectors (2-way 300-115,200 baud), XON/XOFF, CTS/RTS
- Eight relays (normally open) rated at 750 mA, 28 VAC/24 VDC
- Six input/output channels, rated at 200 mA, contact closure or TTL logic inputs
POWER: 600 mA @ 12 VDC (minimum; not including control cards or bus devices)
