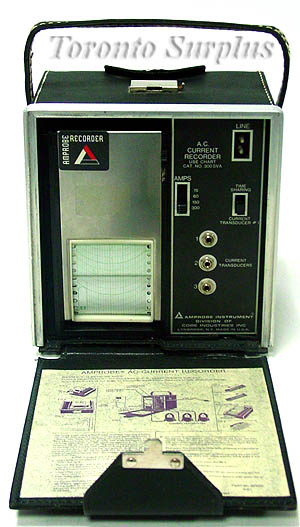

Amprobe LAA3 / 984652 AC Current Recorder, with 3 x Probes, Line Cord & Paper - Ranges: 0-15/60/150/300 Amps

Description

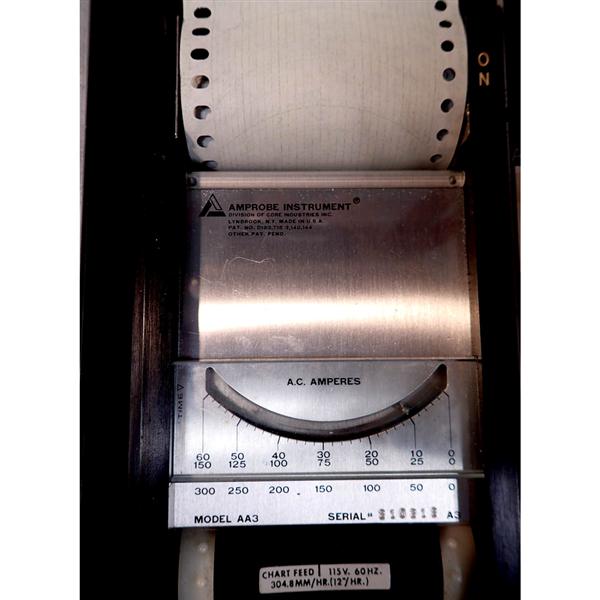

<p>Amprobe LAA3 / 984652 AC Current Recorder </p><p>Ranges: 0-15/60/150/300 Amps</p><p>Power Requirements: 115 Volts- 60 C.P.S., unless otherwise indicated</p><p>Accuracy: +/-3% of full scale on sinusoidal wave forms</p><p>The model LAA3 using a time-sharing sequential recording principle, can record up to three AC currents on the same chart. The recorder is supplied with three matched clamp-on current transducers which have been calibrated to the recorder. The three transducers sense the three currents (A1, A2, A3) which are recorded in the following sequence: A1, A2, A3, A2, A3, A3. The trace for each current recorded on the chart has a different "dot" pattern. (1, 2 or 3 dots) which identifies each current trace. One complete sequence of recording all three currents (A1, A2, A3,A2, A3, A3) takes only 30 seconds with a chart speed of twelve-chines per hours, six minutes with a chart speed of one inch per hour.</p><p>INCLUDES the FOLLOWING:</p><ul><li>Line Cord,</li><li>3 current probes</li><li>Spare roll of paper (plus the partial roll currently in the recorder)</li></ul><p>NOTE: the handle is tearing, so we will replace it..</p>

Specifications
