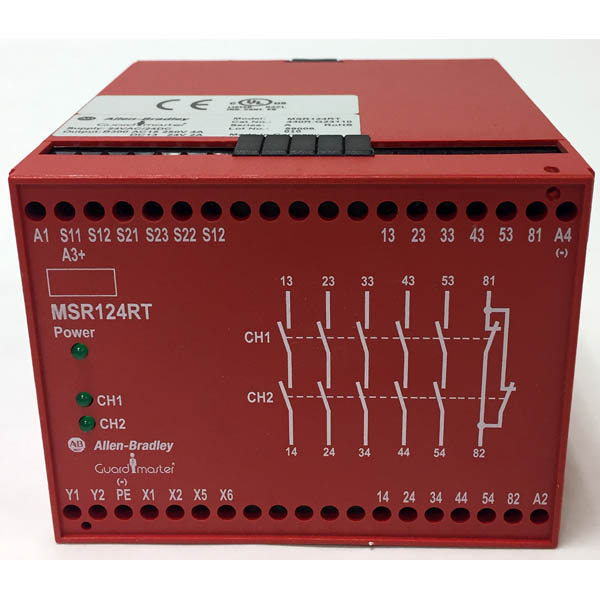

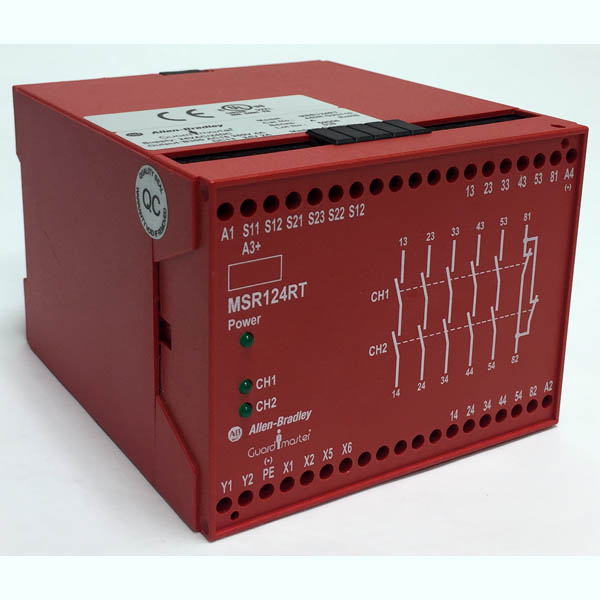

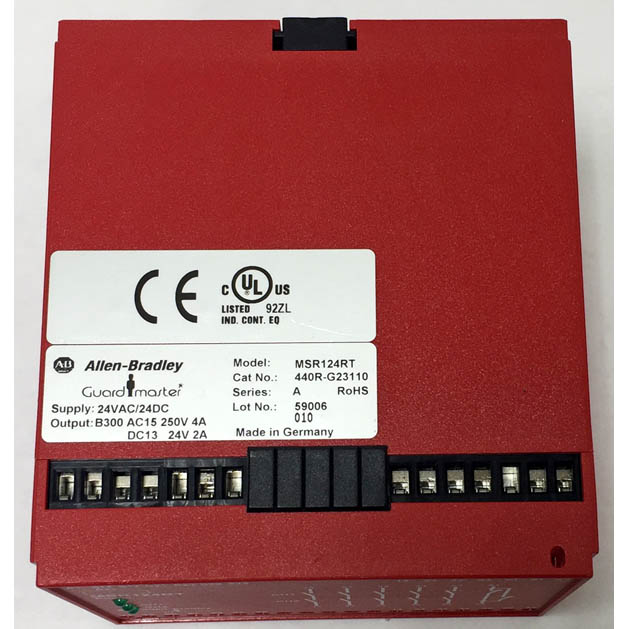

Allen Bradley MSR124RT / 440R-G23110 Guard Master Relay In: 24VAC/DC, Out: 240VAC/24VDC

Description

<p>
Input Power Entry &#160;&#160; &#160;24V AC/DC, 115/230V AC, 50/60 Hz
Power Consumption &#160;&#160; &#160;&lt;4V A
Inputs
Safety Inputs &#160;&#160; &#160;1 N.C. &amp; 1 N.O.
Input Simultaneity &#160;&#160; &#160;0.5 seconds
Input Resistance, Max. &#160;&#160; &#160;500 W
Reset &#160;&#160; &#160;Auto./Manual
Power On Delay/Recovery Time &#160;&#160; &#160;—/—
Response Time &#160;&#160; &#160;50 ms
Outputs
Safety Contacts &#160;&#160; &#160;
Auxiliary Contacts &#160;&#160; &#160;
Thermal CurrentIlth &#160;&#160; &#160;4 A (nonswitching)
Rated Impulse withstand VoltageIlth &#160;&#160; &#160;2500V
Switching Current @ Voltage, Min. &#160;&#160; &#160;10 mA @ 10V
Fuses, Output (External) &#160;&#160; &#160;5 A quick acting (external)
Electrical Life (Operations) &#160;&#160; &#160;220V AC/4A/880VA cosf = 0.35…0.1 M
220V AC/1.7A/375VA cosf = 0.6…0.5 M
30V DC/2A/60W = 1 M
10V DC/0.01A/0.1W = 2 M
Mechanical Life &#160;&#160; &#160;2,000,000 operations
Utilization Category
A600/AC-15 &#160;&#160; &#160;(Ue) &#160;&#160; &#160;600V &#160;&#160; &#160;500V &#160;&#160; &#160;240V &#160;&#160; &#160;120V
&#160; &#160;&#160; &#160;(le) &#160;&#160; &#160;1.2 A &#160;&#160; &#160;1.4 A &#160;&#160; &#160;3 A &#160;&#160; &#160;6 A
N600/DC-13 &#160;&#160; &#160;(Ue) &#160;&#160; &#160;600V &#160;&#160; &#160;500V &#160;&#160; &#160;250V &#160;&#160; &#160;120V
&#160; &#160;&#160; &#160;(le) &#160;&#160; &#160;0.4 A &#160;&#160; &#160;0.55 A &#160;&#160; &#160;1.1 A &#160;&#160; &#160;2.2 A
Environmental
Enclosure Type Rating/
Terminal Protection &#160;&#160; &#160;IP40 (NEMA 1), DIN 0470/
IP20, DIN 0470
Operating Temperature [C (F)] &#160;&#160; &#160;-10…+55 ° (14…131 °)
Vibration &#160;&#160; &#160;0.75 mm (0.30 in.) peak, 10…55 Hz
Shock &#160;&#160; &#160;30 g, 11 ms half-sine
Physical Characteristics

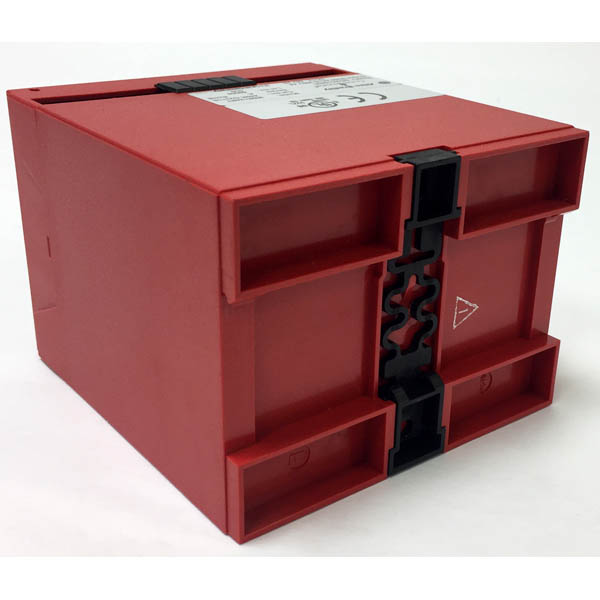

Mounting &#160;&#160; &#160;35 mm DIN Rail
&#160;</p>
