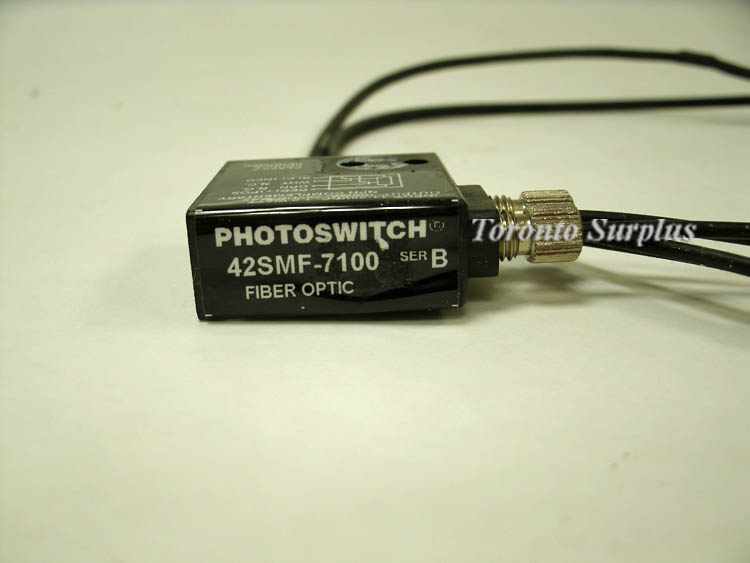

Allen Bradley 42SMF-7100 / 42SMF7100, Series bFibre Optic Photoswitch, 11-28VDC, 1.2W

 The Series 7000 is a family of general purpose photoelectric sensors intended for light to medium duty industrial applications. They offer a compact package, wide variety of sensing modes, and high speed response

Unit Protection:                                 Reverse Polarity

Supply Voltage                                  11-28V DC

Current Consumption                     46mA maximum

Output Type                                       Dual ( N.O. and N.C ) NPN or PNP

Output Rating                                   100mA @ 28V DC

Response Time                               500µs

Housing Material                              Valox

Lens Material                                    Acrylic  ( glass on polarized  models )

Connection Types                            3m 300V cable, 4 pin DC microQD on 12in pigtail

Operating Environment                   NEMA 3, 4x, 6P, 12 13 ( IP67)

Vibration                                            155Hz, 1mm pulse duration , Meets or exceeds IEC 60947-5-2

Shock                                                  30g with 1ms pulse duration. Meets or exceeds IEC 60947-5-2

Operating Temp                               -40°C - +65°C ( -40°F - +150°F )

Relative Humidity                              5....... 95%
