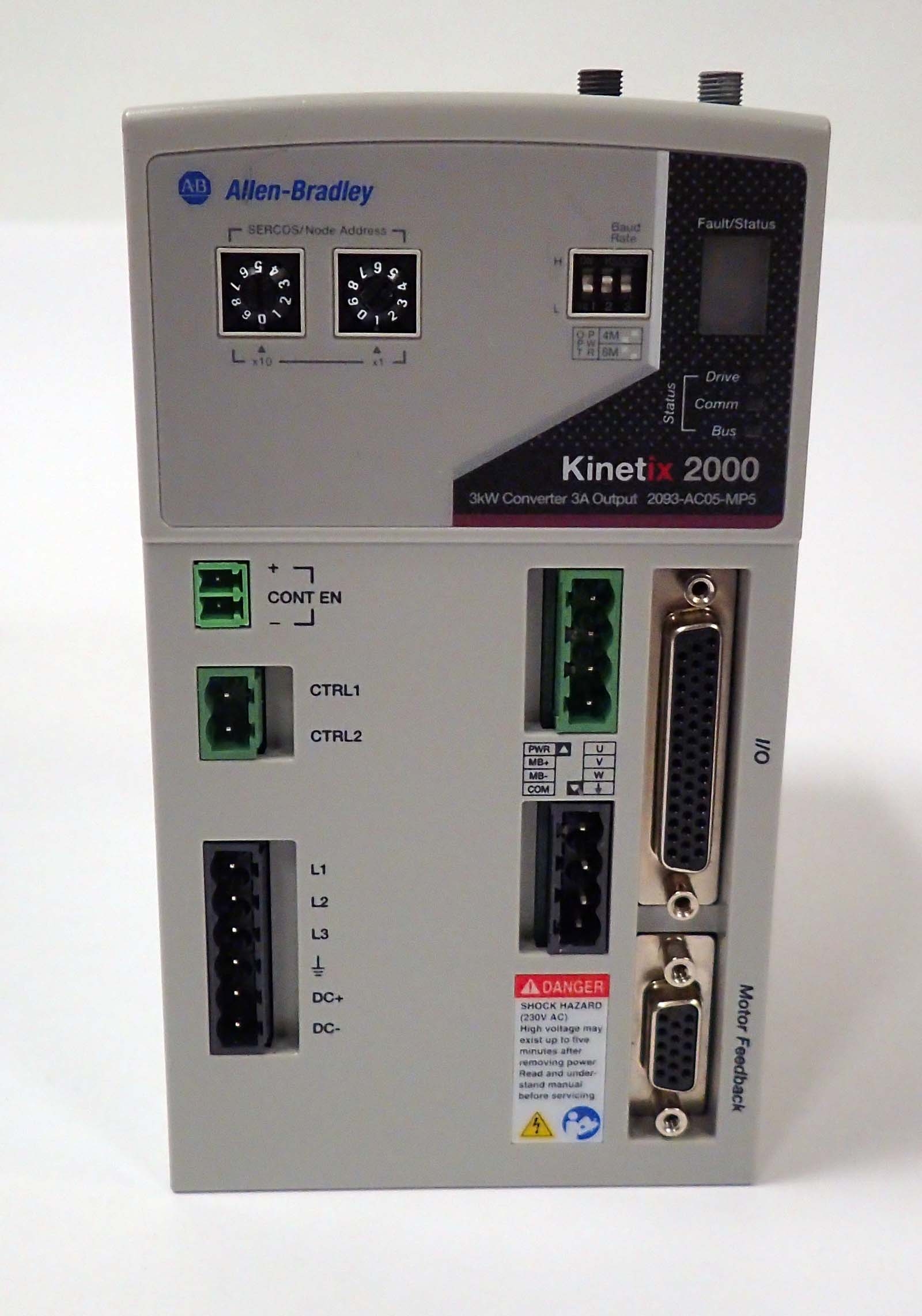

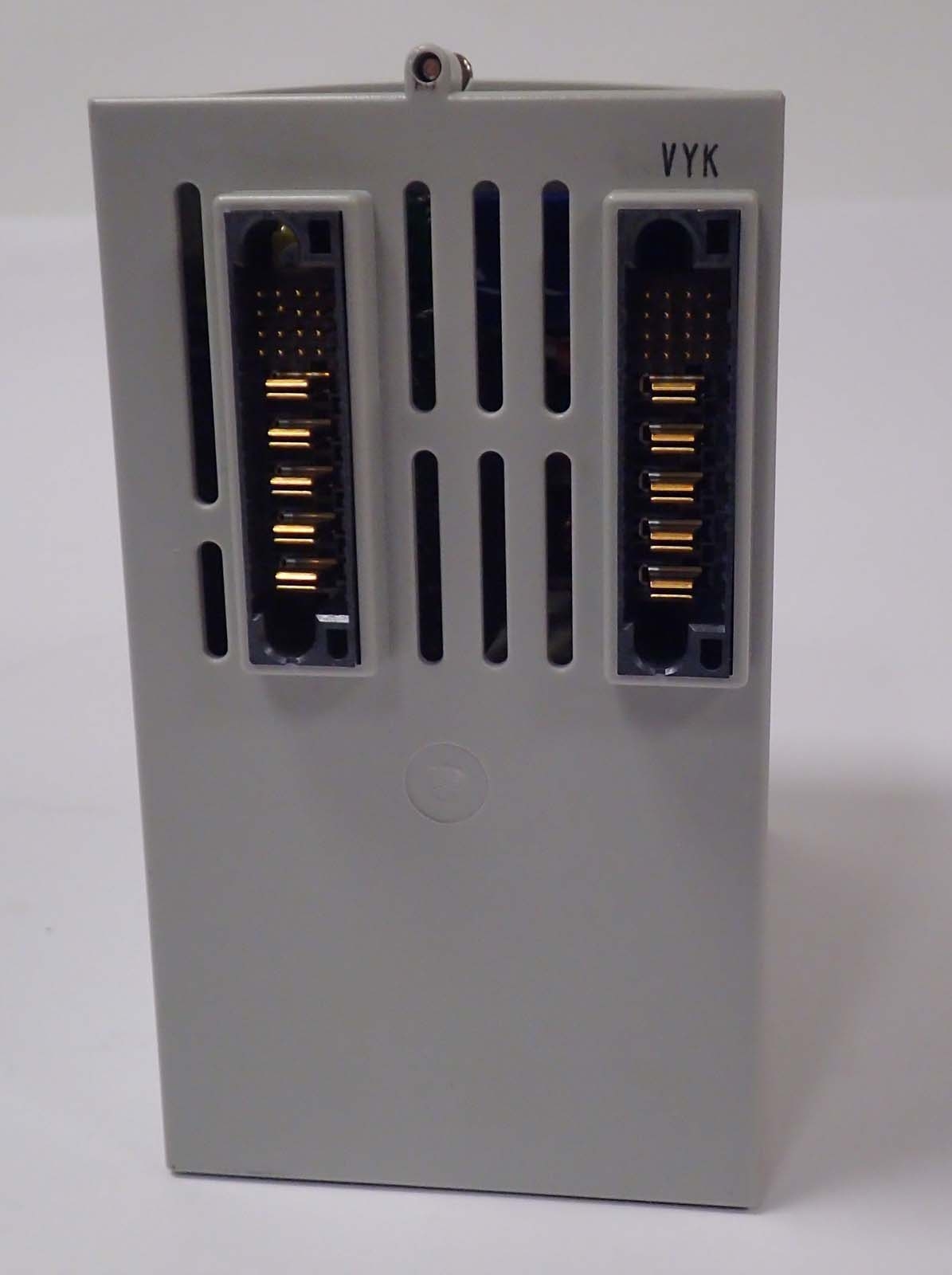

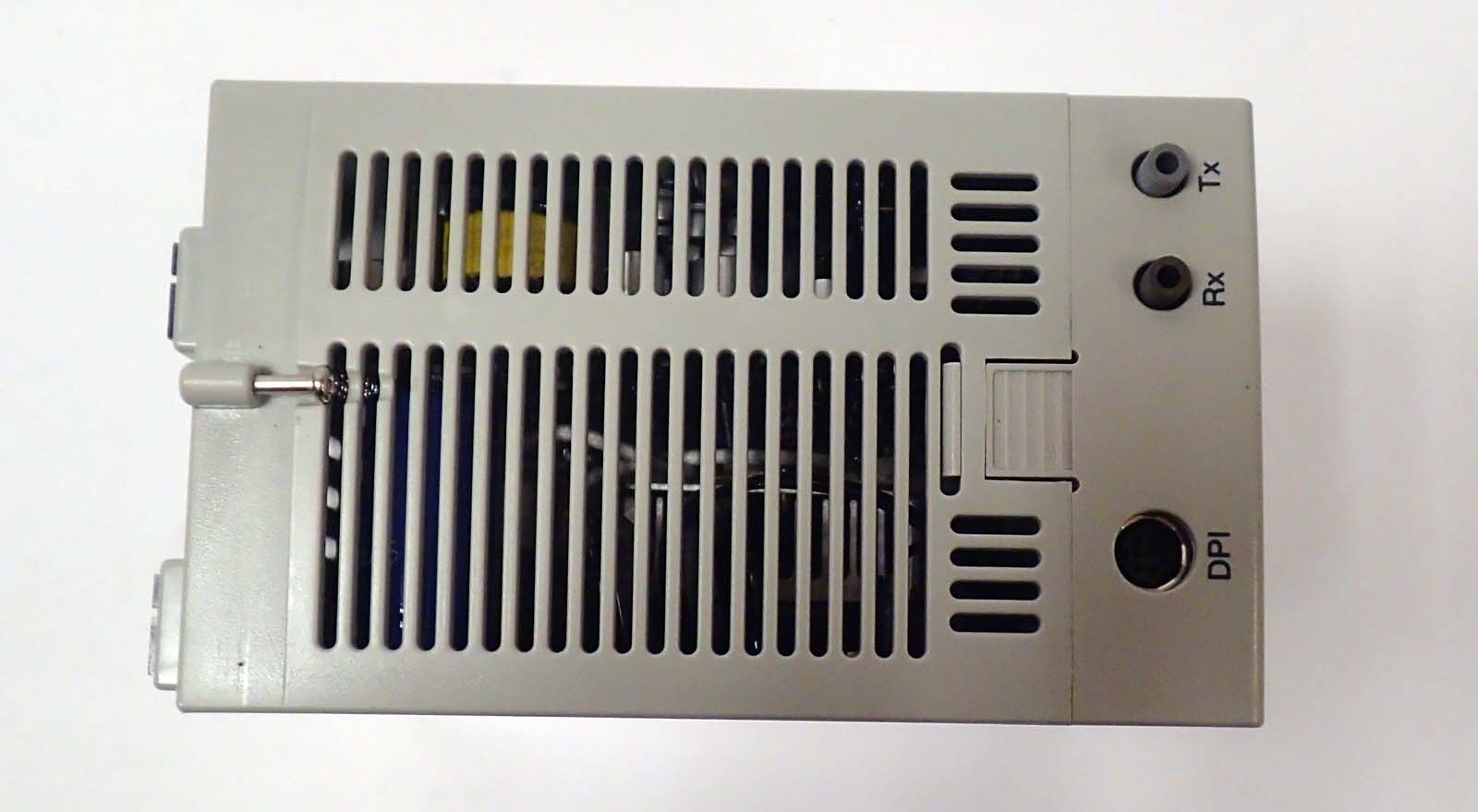

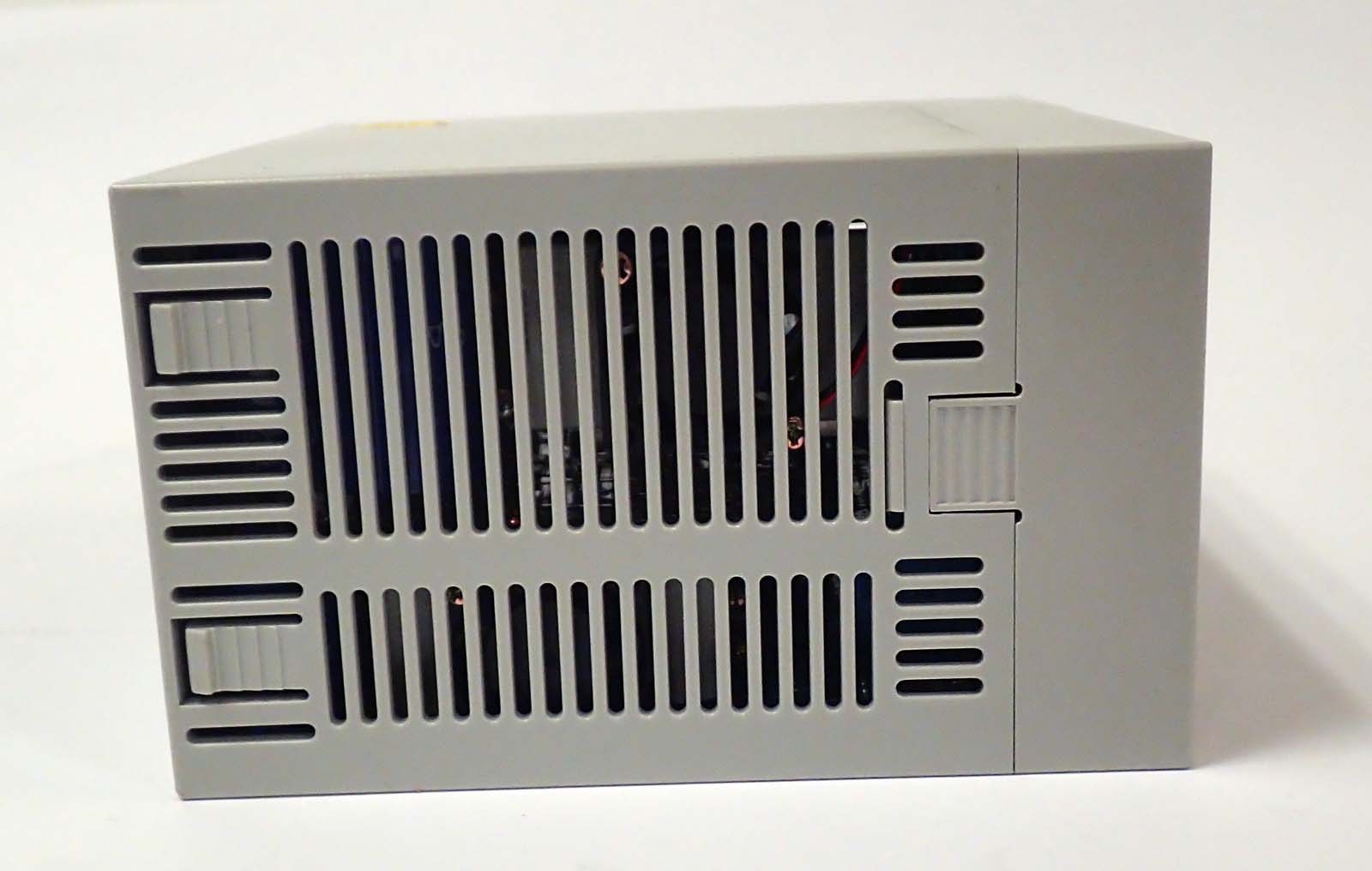

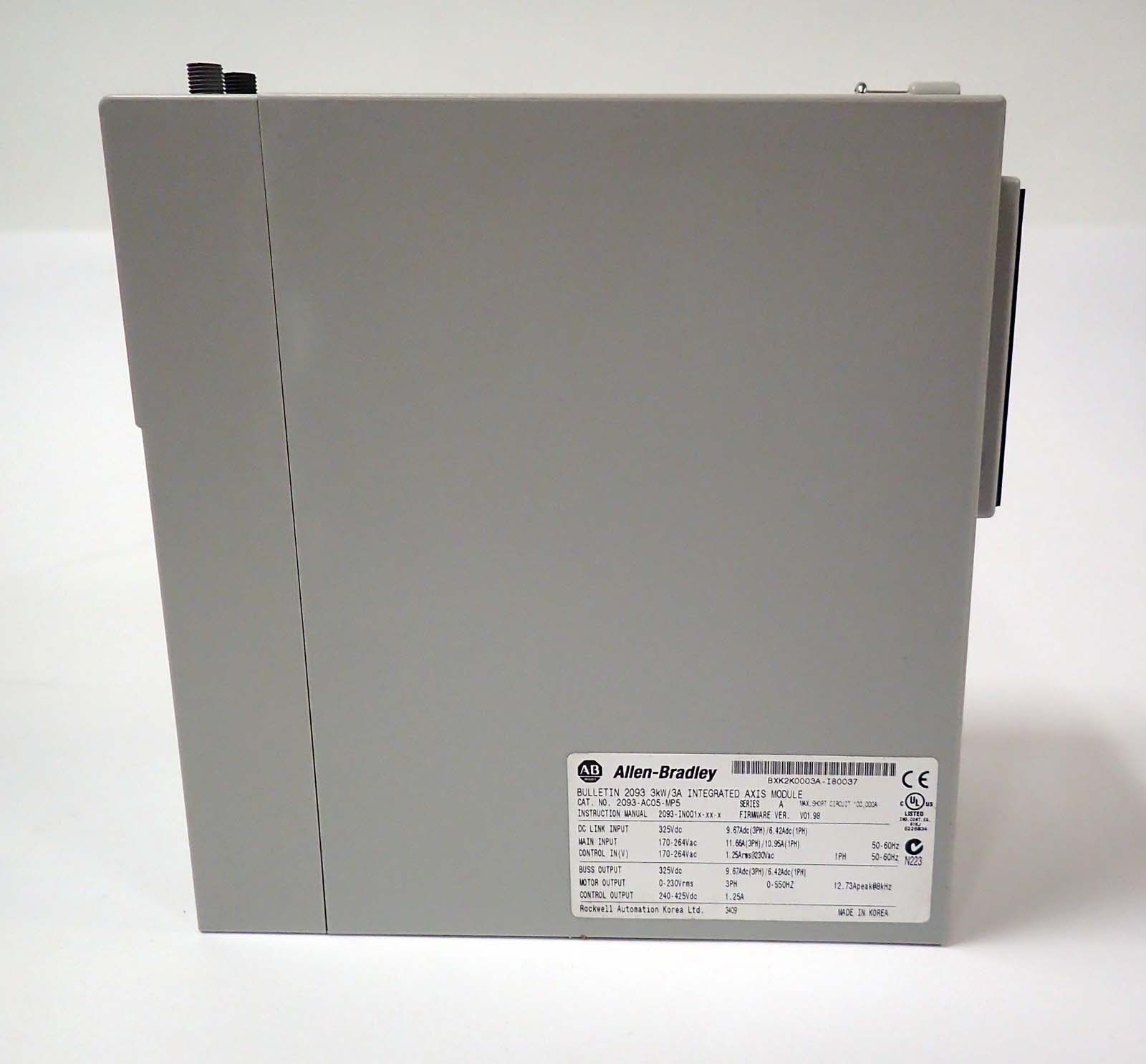

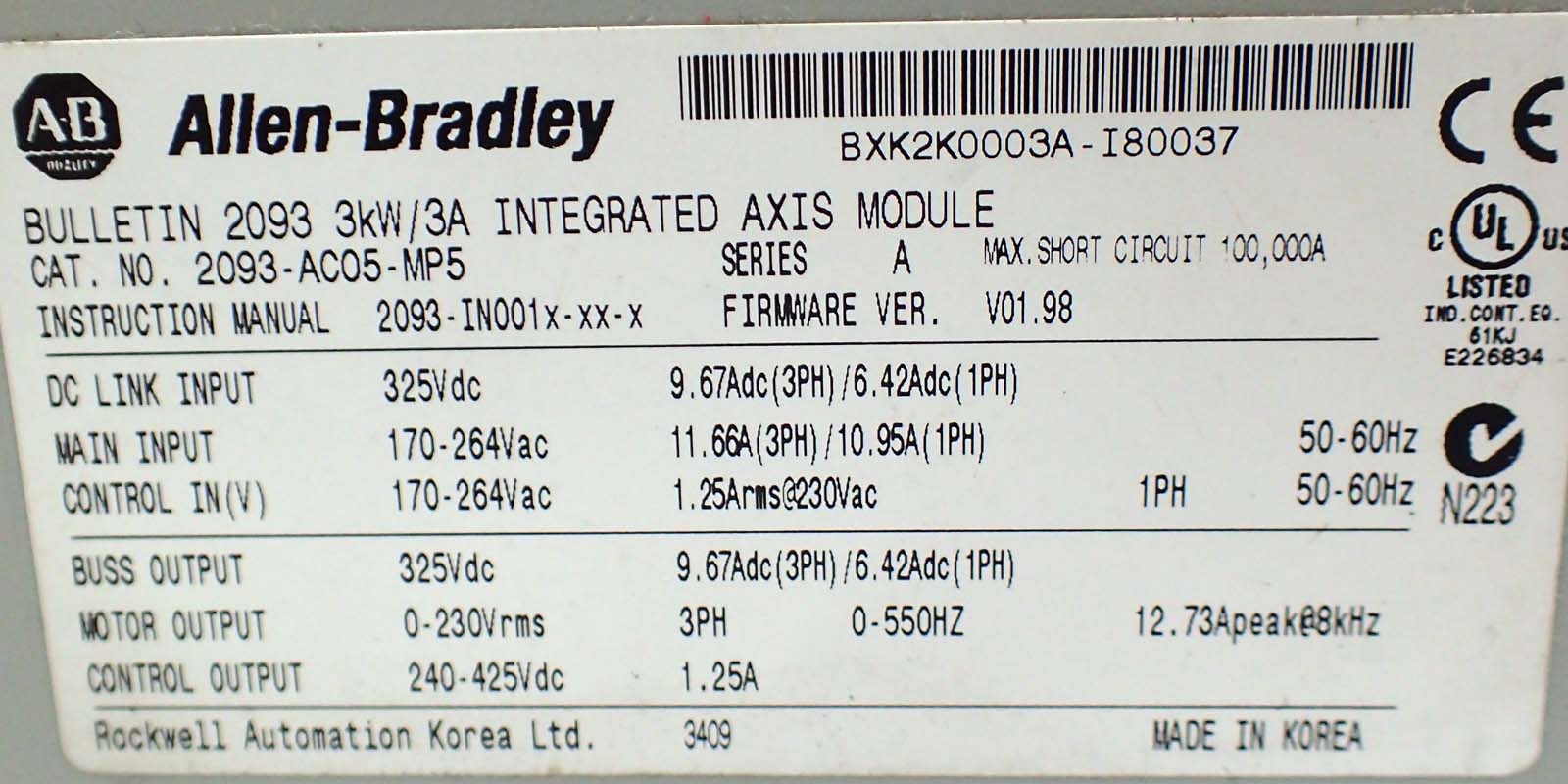

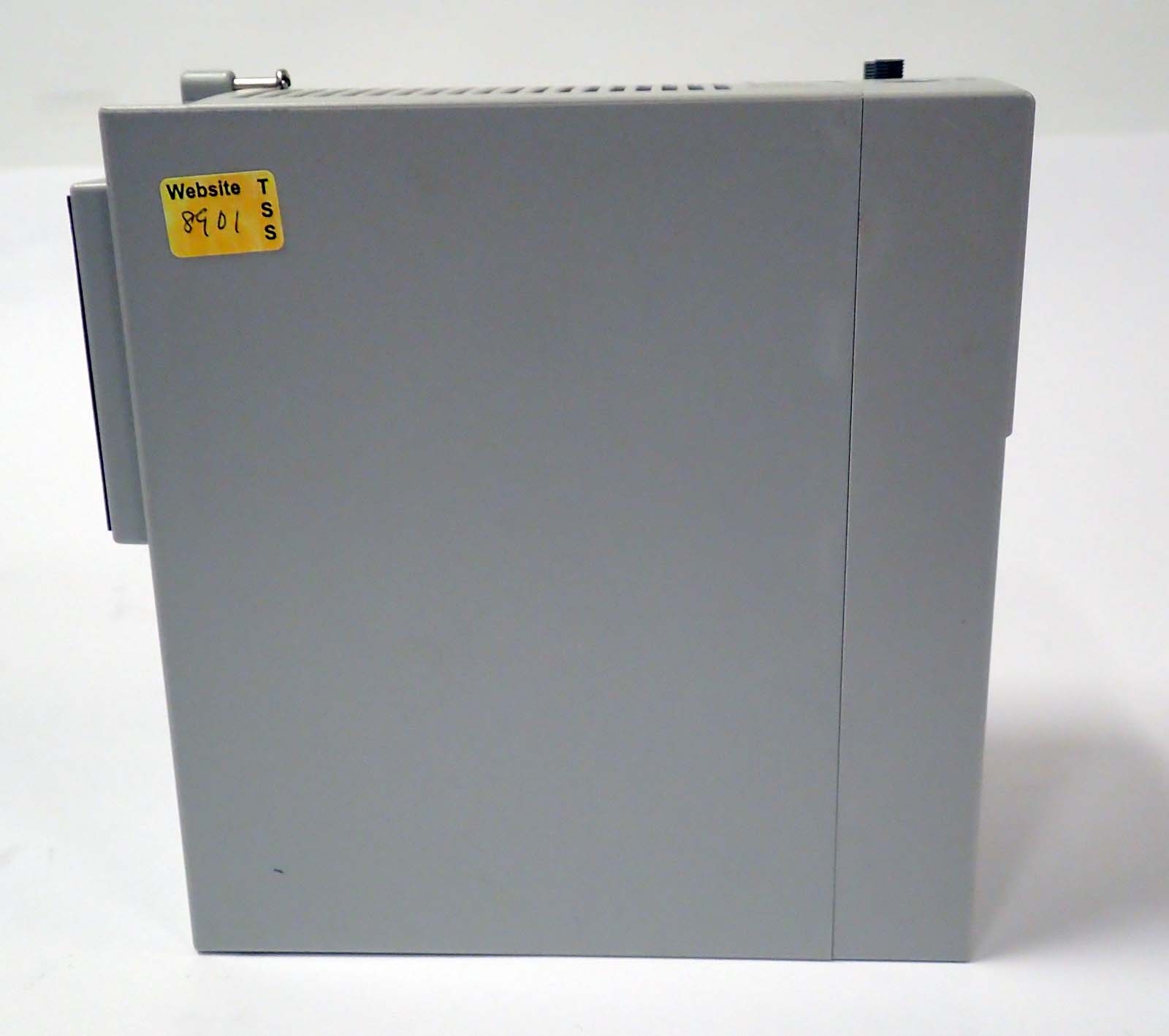

Allen Bradley 2093-AC05-MP5 Servo Drive Kinetix 2000 3KW Integrated Axis M 3PH 1.25A

Axis Module (AM), is a shared 230V dc bus power inverter, that mounts on a Kinetix 2000 power rail. The
2093-AMPx AM must be used with an IAM.

Three-phase Input (230V nom)
Input voltage, ac 170...264V rms
Input frequency, ac 47...63 Hz
Max inrush (0-pk) 11.66 A 34.0 A
Input voltage, dc (common bus follower) 240...375V dc
Input current, dc (common bus follower) 9.76 A
Control power ac input voltage 170...264V rms single-phase (230V nom)
Control power ac input current
Nom (@ 230V ac) rms
Max inrush (0-pk) 1.25 A 93.0 A (2)
Bus output voltage, nom 325V dc
Line loss ride through 20 ms
Continuous output current to bus (Adc) 9.67 A
Intermittent output current to bus (Adc) (3) 19.34 A
Bus overvoltage 425V dc
Bus undervoltage 137.5V dc
Internal shunt
Continuous power 15 W
Peak power 3000 W
Internal shunt resistor 50 Ù
Shunt on 405V
Shunt off 375V
Continuous power output to bus 3.0 kW
Peak power output 6.0 kW
Efficiency 95%
Converter inductance N/A
Converter capacitance 540 ìF
Converter leakage current (max) 2.0 mA
(1) All 2093-AC05 integrated axis modules are limited to two contactor cycles per minute (with up to four axis modules), or one contactor cycle per minute (with five to eight
