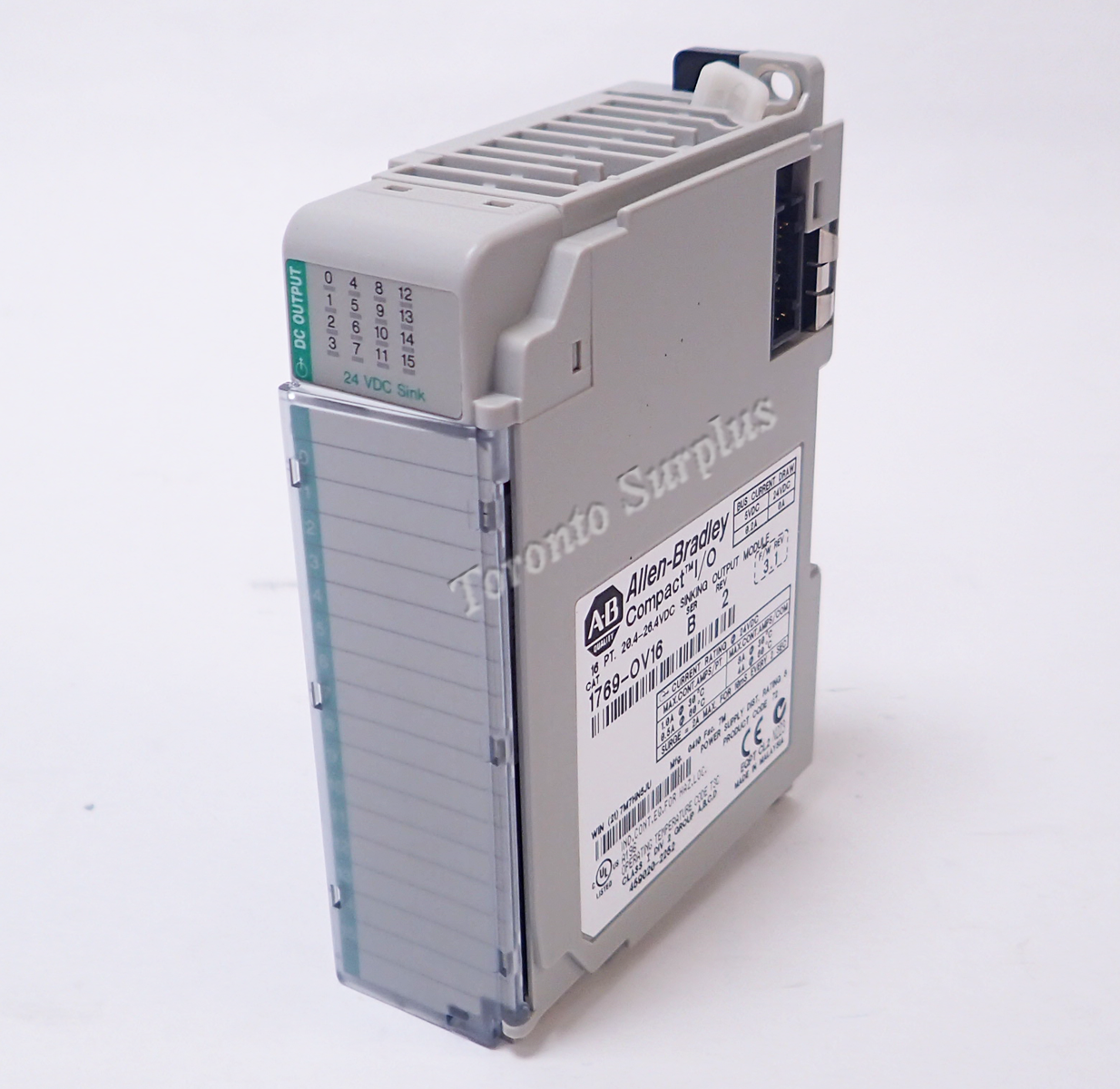

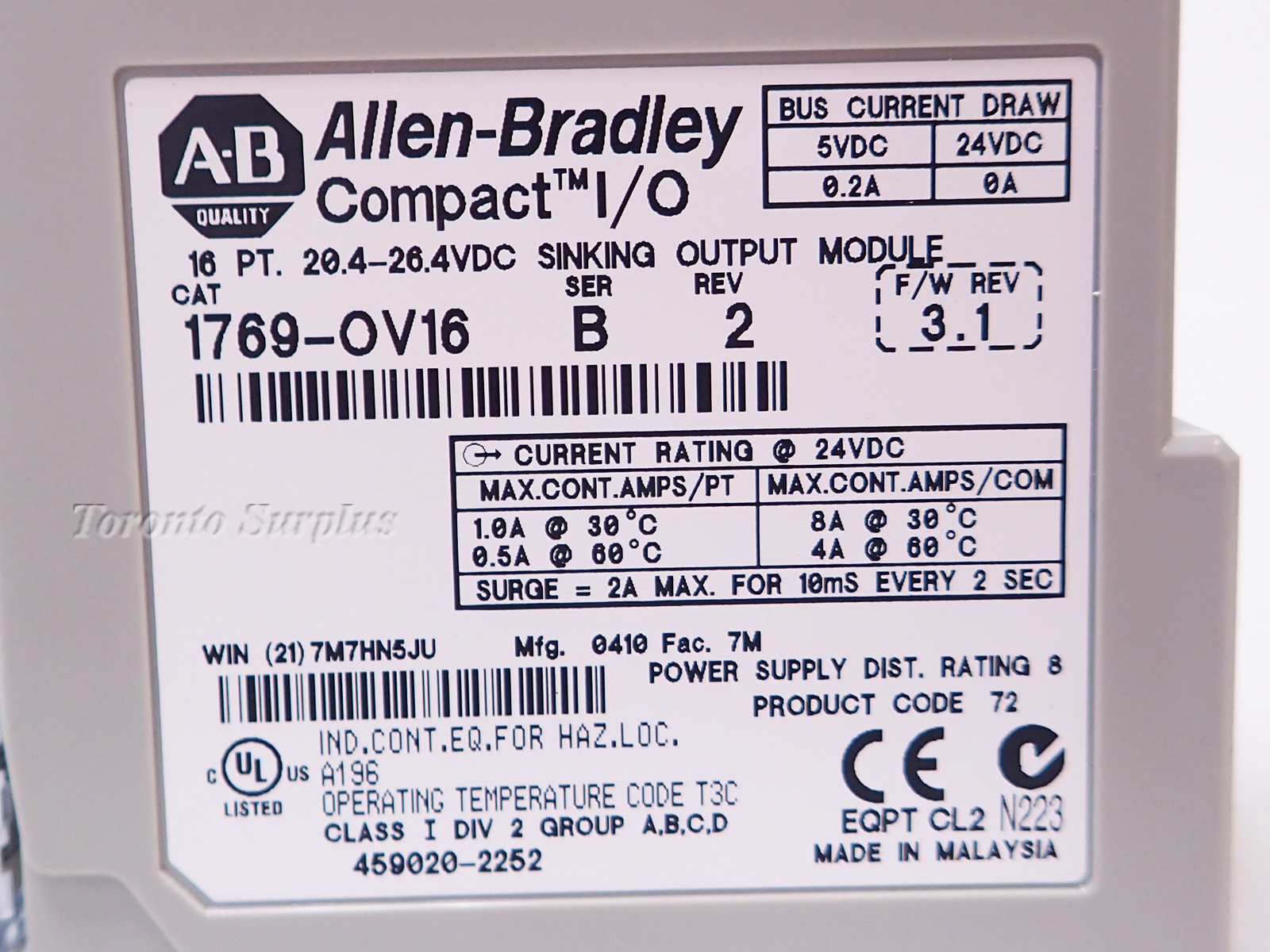

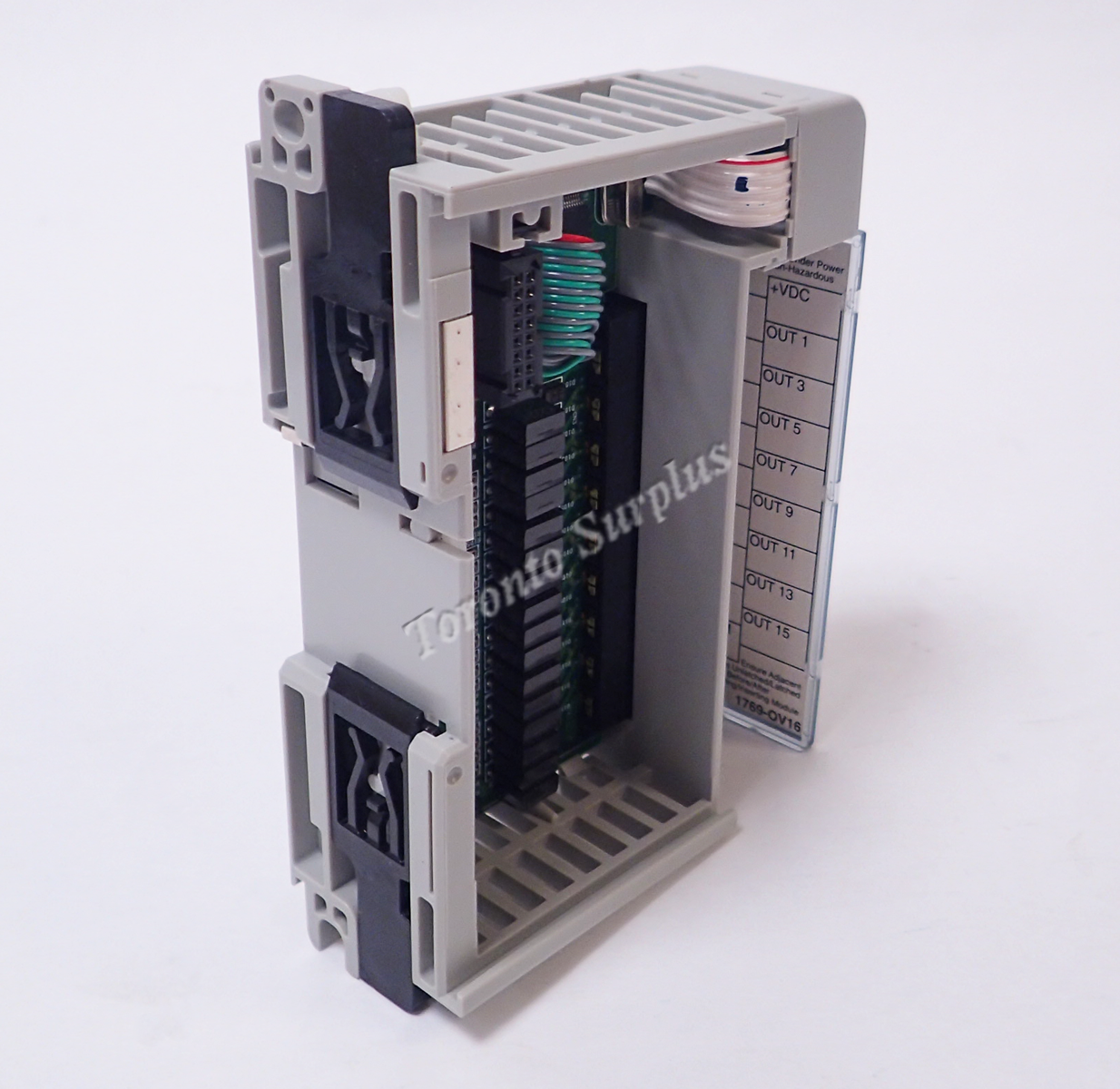

Allen Bradley 1769-OV16 Series B Compact I/O 24V DC Output
sku891410+ in stock
$155.00CAD
By Allen Bradley
<p>Outputs 16 (16 points/group) Voltage category 24V DC sink Operating voltage range 20.4…26.4V DC Output delay, on 0.1 ms Output delay, off 1.0 ms Current draw @ 5.1V 200 mA Heat dissipation, max 2.06 W Off-state leakage current, max(1) 1.0 mA @ 26.4V DC On-state current, min 1.0 mA On-state voltag…
Description
<p>Outputs 16 (16 points/group)
Voltage category 24V DC sink
Operating voltage range 20.4…26.4V DC
Output delay, on 0.1 ms
Output delay, off 1.0 ms
Current draw @ 5.1V 200 mA
Heat dissipation, max 2.06 W
Off-state leakage current, max(1) 1.0 mA @ 26.4V DC
On-state current, min 1.0 mA
On-state voltage drop, max 1.0V DC @ 1 A
Current per point, max 0.5 A @ 60 °C (140 °F)
1.0 A @ 30 °C (86 °F)
Current per module, max 4.0 A @ 60 °C (140 °F)
8.0 A @ 30 °C (86 °F)
Surge current(2) 2.0 A for 10 ms, repeatable every 2 s
Isolation voltage Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output
point to bus
75V DC working voltage (IEC Class 2 reinforced insulation)</p>
