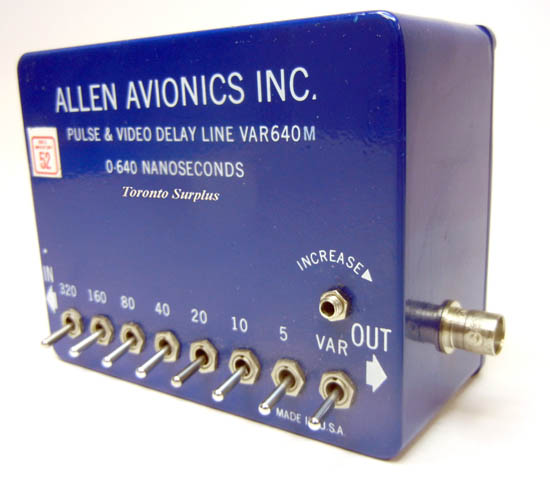

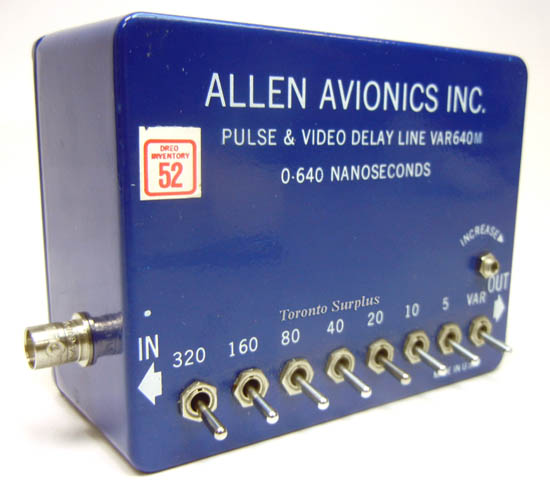

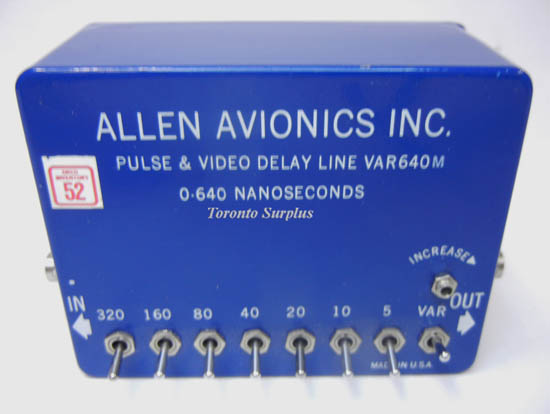

Allen Avionics Pulse & Video Delay Line VAR640M
sku115674 in stock
Request a Quote
By Allen Avionics
<p>Allen Avionics Pulse & Video Delay Line VAR640M</p><ul><li>0-640 Nanoseconds Delay Range</li><li>Toggle Switch and Trimmer</li><li>Trimmer Variation: Continuously Variable to 5 Nanoseconds</li><li>Switch Variation: Toggle 5 to 635 in 5 Ns Steps</li><li>Maximum Insertion Loss @ 100KHz (dB): 0.8</l…
Description
<p>Allen Avionics Pulse & Video Delay Line VAR640M</p><ul><li>0-640 Nanoseconds Delay Range</li><li>Toggle Switch and Trimmer</li><li>Trimmer Variation: Continuously Variable to 5 Nanoseconds</li><li>Switch Variation: Toggle 5 to 635 in 5 Ns Steps</li><li>Maximum Insertion Loss @ 100KHz (dB): 0.8</li><li>Flatness at any delay Setting 100KHz to 5.5 MHz (db): 0.5</li></ul><ul><li>Impedance :75 Ohms</li><li>Pulse distortion: less than 3% with an input pulse rise time of 20 nanoseconds</li><li>Working Voltage: 100 volts maximum</li><li>Return Loss: 20dB or greater whichever is greater.</li></ul><p> </p><p> </p>
