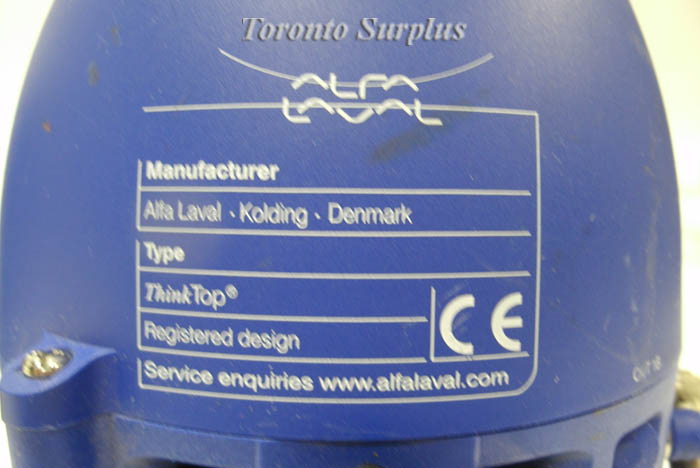

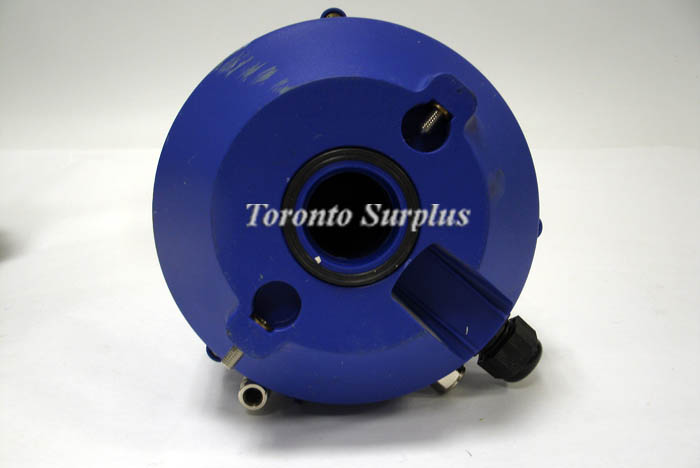

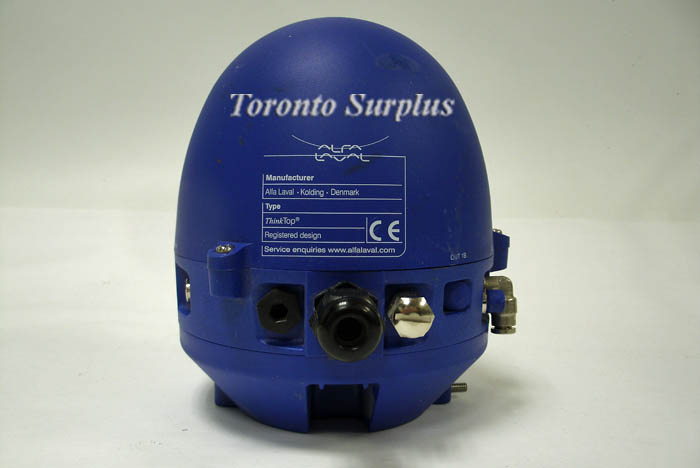

Alfa-Laval Thinktop Digital 8 - 30 VDC, PNP/NPN

Description

<p>&#160;The ThinkTop is designed to ensure optimum valve control in conjunction with Alfa Laval sanitary butterfly, single-seat and Mixproof valves and it is compatible with all major PLC systems (Programmable Logic Controller with PNP/NPN interface). It is for use in food, dairy and brewery installations and in biopharmaceutical applications.</p><p>COMMUNICATION</p><div data-canvas-width="276.9845" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Interface .................... Digital</div><div data-canvas-width="249.4063" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Supplyvoltage ................ 8-30 VDCSensor board</div><div data-canvas-width="318.7704" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Powersupply ................ 24VDC,1W</div><div data-canvas-width="315.1278000000001" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Feedbacksignal#1 ............. Closedvalve</div><div data-canvas-width="306.5270000000001" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Feedbacksignal#2 ............. Openvalve</div><div data-canvas-width="268.23030000000006" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Feedbacksignal#3 ............. Seat-lift 1 or 1 Ext. signal</div><div data-canvas-width="268.23030000000006" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Feedbacksignal#4 ............. Seat-lift 2 or 1 Ext. signal</div><div data-canvas-width="278.8344000000001" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Feedbacksignal#5 ............. Status</div><div data-canvas-width="249.61039999999997" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Valvetoleranceband ............ 1-5</div><div data-canvas-width="234.99710000000005" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Defaulttoleranceband ...........±5mm</div><div data-canvas-width="234.99580000000003" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Sensoraccuracy ..............±0.1 mm</div><div data-canvas-width="260.40689999999995" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Strokelength ................. 0.1-80 mm</div><div data-canvas-width="260.40689999999995" data-font-name="g_font_27_0" data-angle="0" dir="ltr">&#160;</div><div data-canvas-width="260.40689999999995" data-font-name="g_font_27_0" data-angle="0" dir="ltr">SOLENOID&#160;VALVE</div><div data-canvas-width="287.1297" data-font-name="g_font_27_0" data-angle="0" dir="ltr">&#160;</div><div data-canvas-width="287.1297" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Supplyvoltage ................ 24VDC 10%, 1 W</div><div data-canvas-width="264.4056999999999" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Airsupply ................... 300-900 kPa (3-9bar)</div><div data-canvas-width="261.20509999999996" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Typeofsolenoids .............. 3/2-ways or 5/2-ways</div><div data-canvas-width="249.4063" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Numbersofsolenoids ........... 0-3</div><div data-canvas-width="262.43229999999994" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Manualholdoverride ............ Yes</div><div data-canvas-width="244.65349999999998" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Throttle function air inlet/outlet . . . . . . 0-100 %</div><div data-canvas-width="244.65349999999998" data-font-name="g_font_27_0" data-angle="0" dir="ltr">Push-infittings ................ø6mmor1/4”</div>

Specifications
