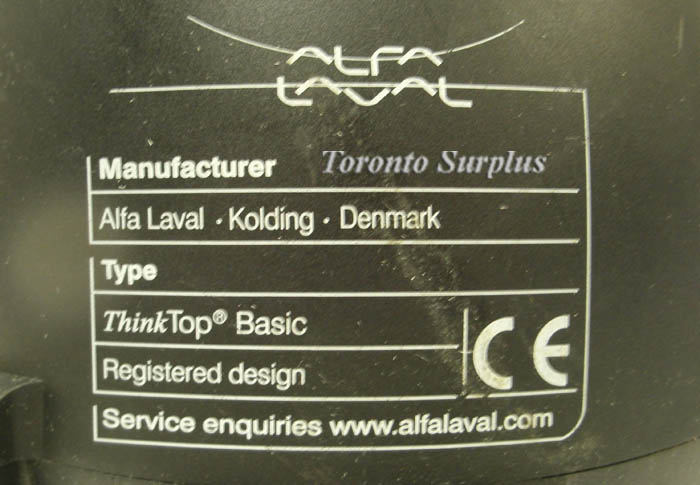

Alfa-Laval ThinkTop Basic Digital 10-30 VDC PNP/NPN
sku106931 — low stock
Request a Quote
By Alfa - Laval
<p> The ThinkTop Basic is a basic control head including sensor board and solenoid valves to control processing valves. It is used to control and supervise pneumatic valves and is mounted on top of the valve. It receives sig nals from a PLC to control the solenoid valve and itsends the val…
Description

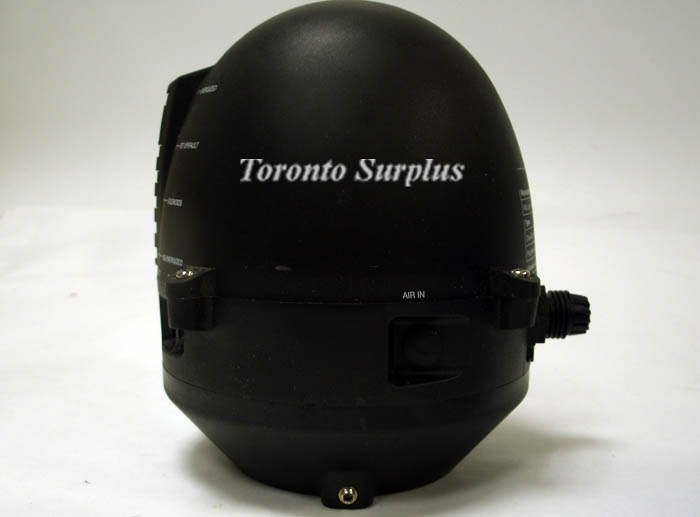

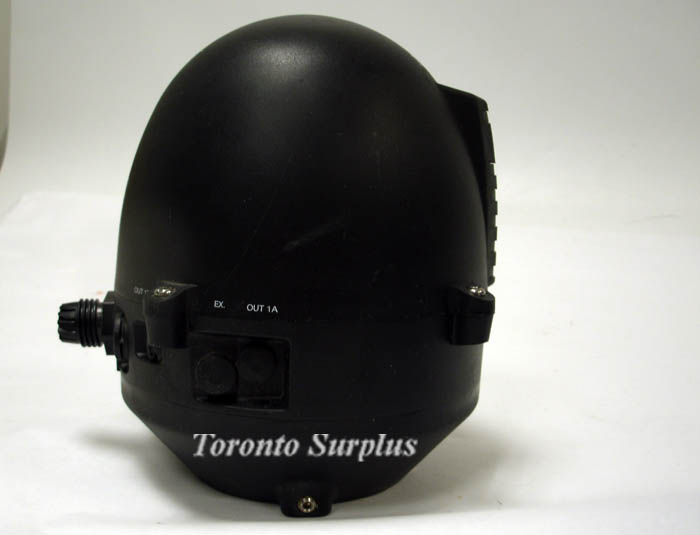

<p> The ThinkTop Basic is a basic control head including sensor board and solenoid valves to control processing valves. It is used to control and supervise pneumatic valves and is mounted on top of the valve. It receives sig nals from a PLC to control the solenoid valve and itsends the valve status feedback signals back to the PLC. To adapt the sensor board to the specific valve, the users make a simple set-up by using local keys.</p><p>FEEDBACK SIGNALS</p><div data-canvas-width="398.6800975598809" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Nominal voltage: ...............Same as connected to the ThinkTop Basic.</div><div data-canvas-width="408.0978417836205" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Load current: ..................50mA typical,100mAmax.</div><div data-canvas-width="367.59919391916134" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Voltage drop: ..................Typical XVat50mA.</div><div data-canvas-width="43.38065393255067" data-font-name="g_font_12_0" data-angle="0" dir="ltr"> </div><div data-canvas-width="43.38065393255067" data-font-name="g_font_12_0" data-angle="0" dir="ltr"> </div><div data-canvas-width="43.38065393255067" data-font-name="g_font_12_0" data-angle="0" dir="ltr">SENSOR DETECTION SYSTEM </div><div data-canvas-width="43.38065393255067" data-font-name="g_font_12_0" data-angle="0" dir="ltr"> </div><div data-canvas-width="40.676538103608394" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Sensor accuracy . . ............. +/- 0,1mm.</div><div data-canvas-width="32.51036075021472" data-font-name="g_font_10_0" data-angle="0" dir="ltr">To l e r ance band: ................+/- 5 mm.</div><div data-canvas-width="36.14323891944385" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Distance to indication pin: .........5+/-3mm.</div><div data-canvas-width="36.14323891944385" data-font-name="g_font_10_0" data-angle="0" dir="ltr">Stroke length: .................0,1-80 mm.</div>
