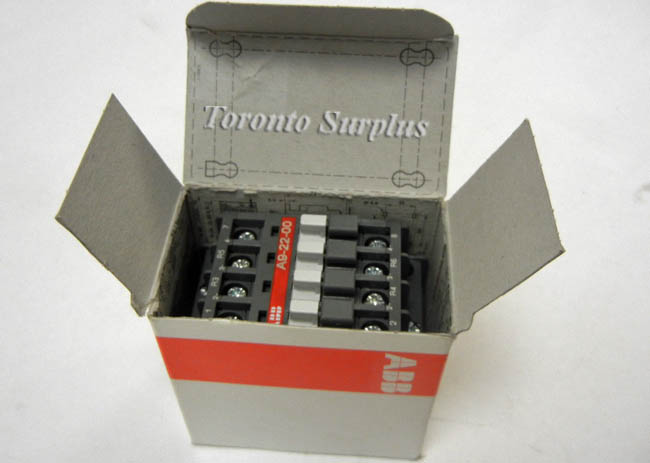

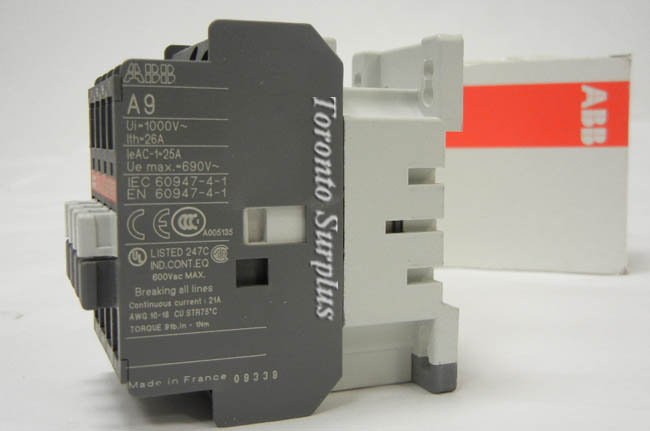

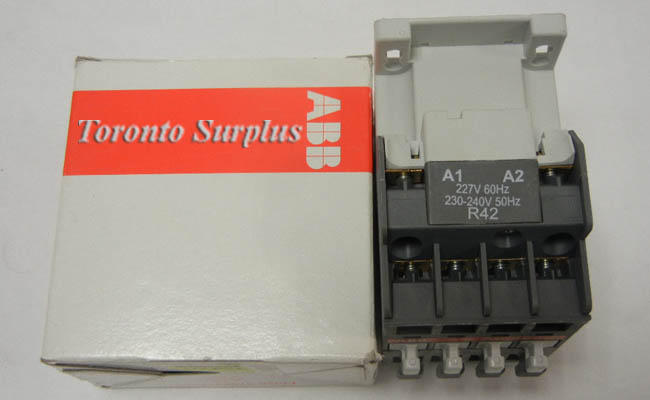

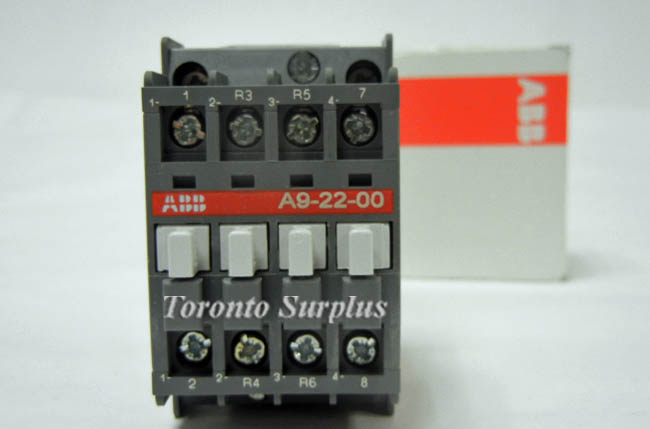

Abb A9-22-00 Contactor 4 Pole 220-230 V 50Hz / 277V 60Hz BNIB / NOS
sku104522 — low stock
10% Store Wide!Save $5.50
$49.50CAD$55.00
By ABB
<p> <span>A 9 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The …
Description
<p> <span>A 9 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The A... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC operated with laminated magnet circuit </span></p><p> </p><div id="RatOpeCurAc1" class="detailPageLeftColumn">Rated Operational Current AC-1 (I<sub>e</sub>):  (690V) 40°C 25 A /   (690V) 55°C 22 A /  (690V) 70°C 18A</div>
